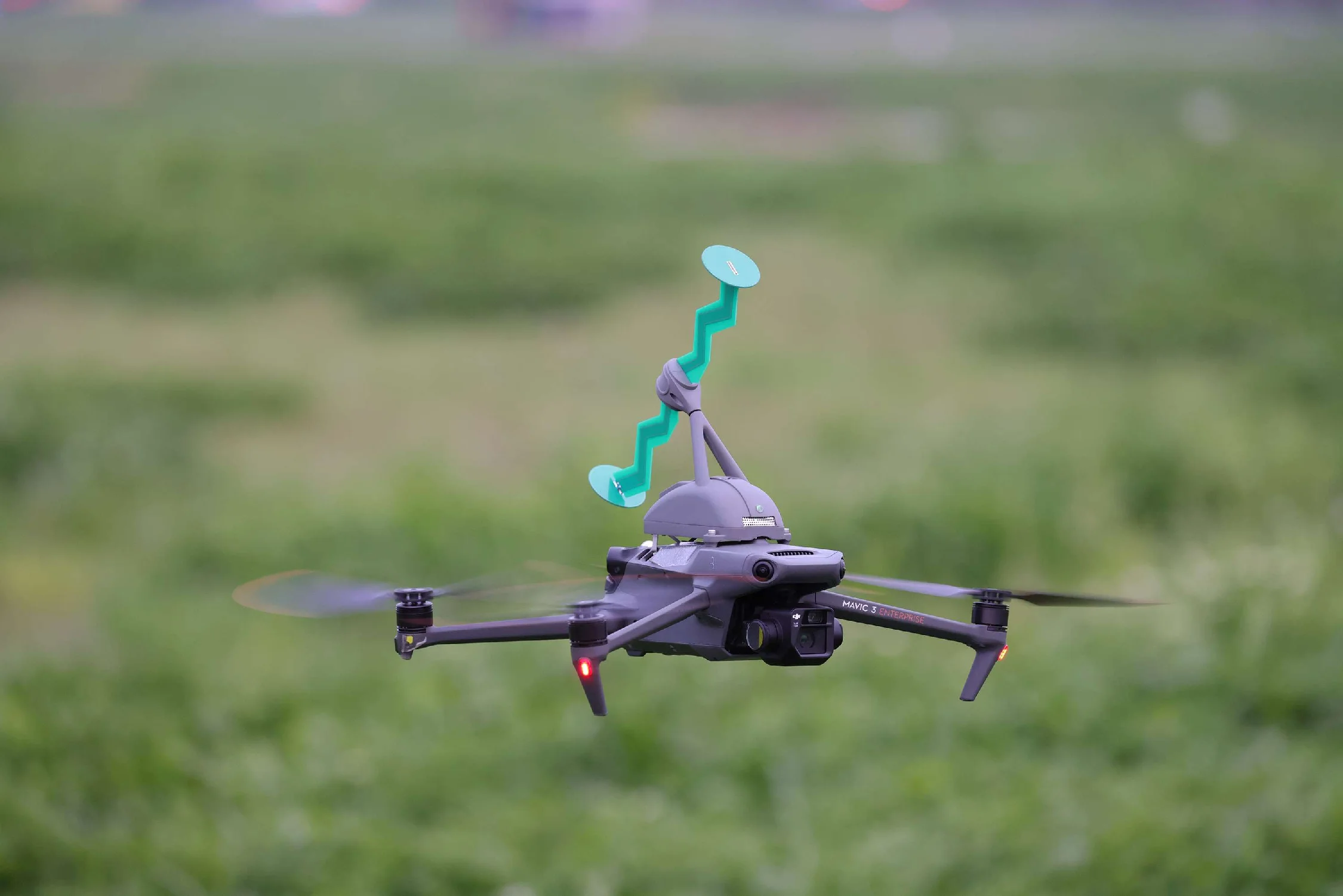

Product Introduction
The Dragonfly series breaks new ground as the industry's first to utilize the compact DJI Mavic 3 Enterprise flight platform equipped with a high-performance, ultra-lightweight drone spectrum monitoring system and radio frequency direction finding system payload, creating a comprehensive aerial regulatory solution.
This highly integrated spectrum monitoring system features rapid deployment mechanisms and secure payload structural attachment, enabling a single operator to manage both flight patterns and real-time radio frequency monitoring executions concurrently. Whether navigating dense urban high-rise complexes or vast open rural regions, the system can take off with minimal setup to capture, analyze, and isolate critical spectrum data lines perfectly.
With an innovative modular radio frequency monitoring layout, the Dragonfly delivers exceptional airborne signal tracking, signal intelligence collection, and direction finding accuracy. No specialized heavy-platform pilot license is required, providing unprecedented operational flexibility and rapid mobility for field spectrum compliance teams and radio regulatory authorities seeking standard factory quotes or official technical datasheets.
Key Features
Route Planning Mode
Features two airborne route planning modes: "Path Patrol" and "Coverage", optimized for automated spectrum mapping along critical corridors, transportation links, and complex infrastructure zones.
Frequency Preset
Preloaded with global satellite and navigation frequency points for rapid mission setup. Supports full customization, modification, and database adjustments for user-defined frequency parameters.
Multi-Device Sync
Enables highly flexible simultaneous operations using both the integrated handheld remote controller and field laptops, allowing multiple stations to sync and monitor live data tasks anywhere.
Electromagnetic Spectrum Mapping
Integrates precise geographic metadata to render flight path signal strength distributions and automatically compile comprehensive regional spectrum heatmaps.
Intersection Localization
Fuses real-time dynamic flight trajectory tracking with continuous multi-position direction-finding data, utilizing intersection algorithms to rapidly isolate target signal sources.
Aerial Signal Documentation
Leverages airborne high-definition imaging for live video feeds, directly correlating optical footage with live signal parameters to document and evidence non-compliant spectral emissions instantly.
Application Scenarios
Spectrum Compliance & Safety
- Routine spectrum monitoring and high-efficiency signal detection.
- Mapping of regional and high-altitude electromagnetic spectrum environments.
- Satellite communication signal detection and uplink/downlink signal validation.
Interference Investigation
- Precise localization and tracking of complex GNSS signal interference sources.
- Rapid mobile identification of anomalous or unauthorized transmissions.
- Providing critical frequency protection diagnostics for vital network hubs.
Remote Perimeter Operations
- Radio environment protection support for major local events.
- Long-range perimeter monitoring and remote area frequency activity assessments.
- Providing automated spectrum enforcement support for compliance teams.
Core System Functions

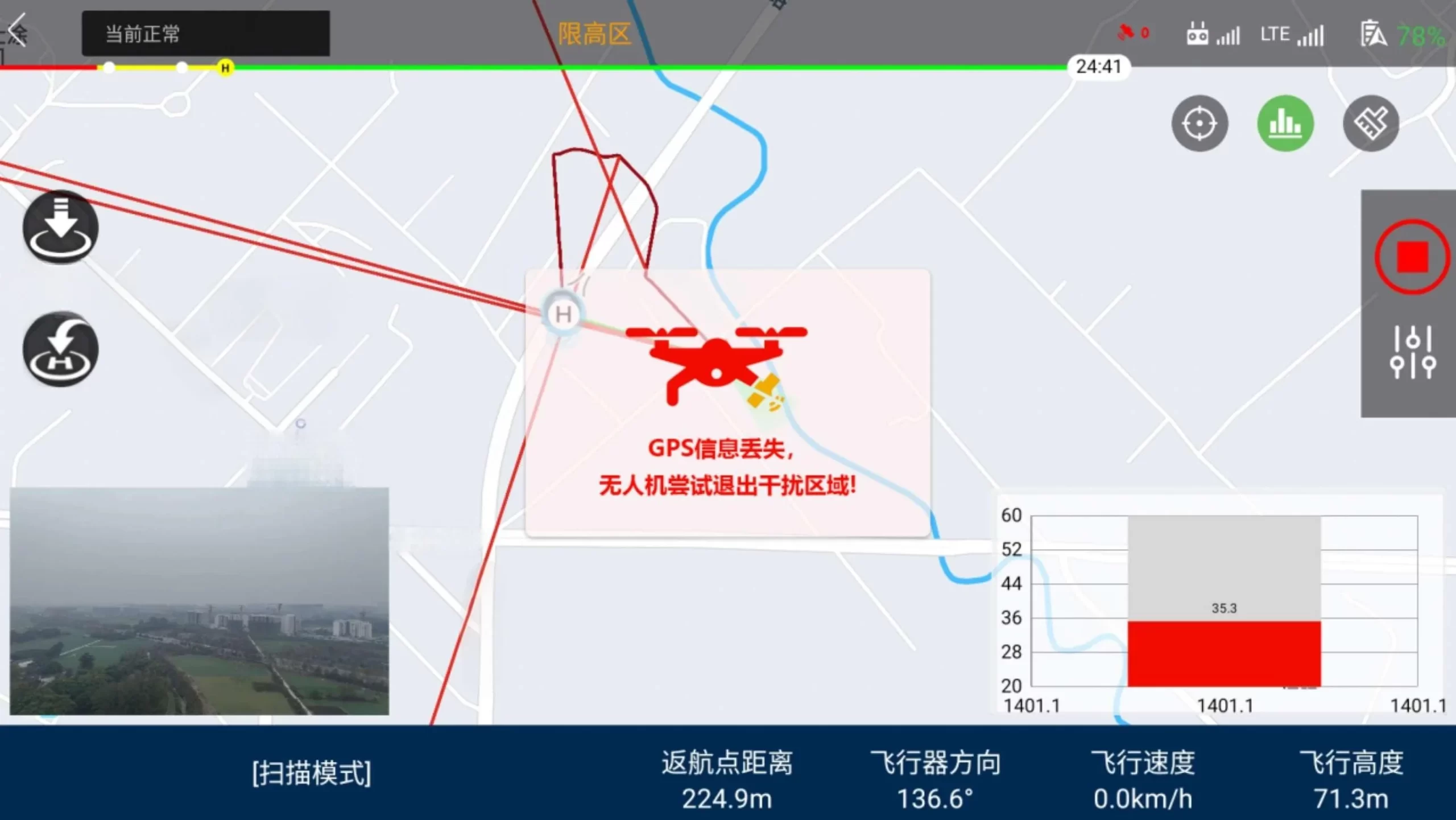

Automated Return-to-Home (RTH)
When the drone encounters severe GNSS signal interference, the system automatically takes over flight control. Utilizing real-time stored flight trajectory and attitude records combined with compass-based inertial navigation, it ensures the drone safely exits the interference area, plans optimal flight paths, and models the boundaries of the interference area.

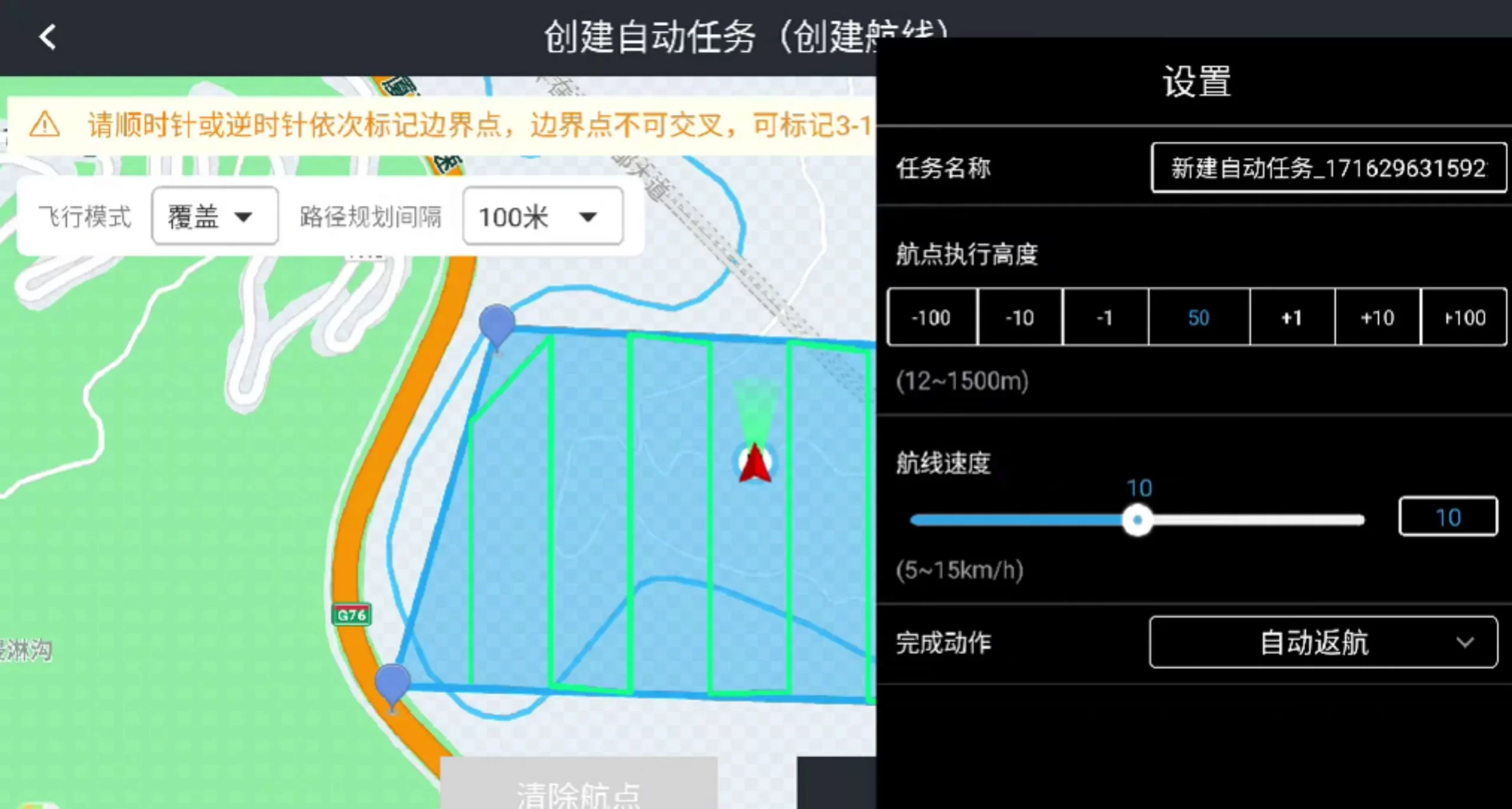

Auto Route Planning
Click the screen to select the monitoring area of interest on the map, set the monitoring frequency band and flight parameters, and generate a flight route to perform spectrum mapping. Capable of measuring multiple signals simultaneously. Additionally, flight intervals can be configured to create full coverage flight plans seamlessly.

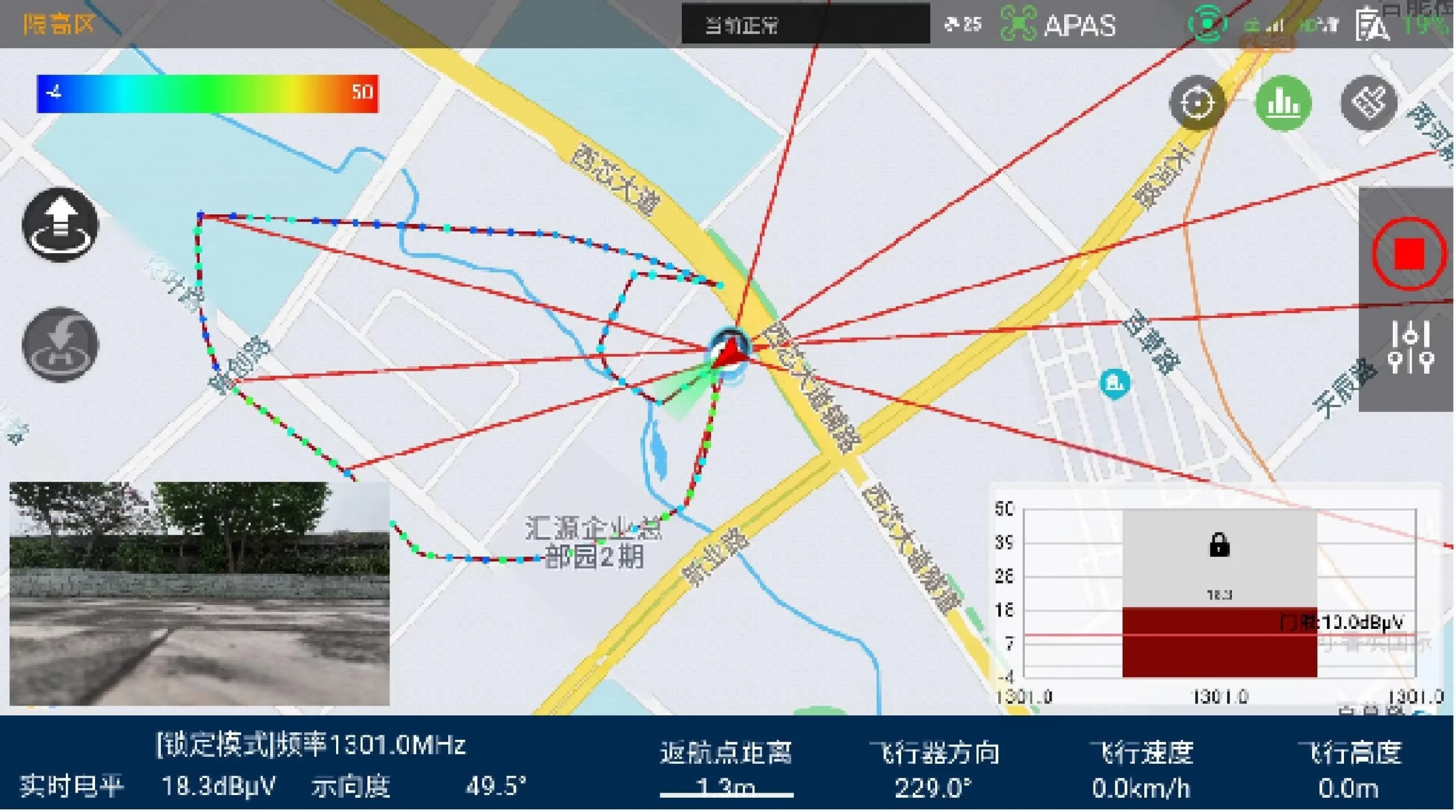

Intersection Localization
During the direction-finding process, the system transmits the direction-finding results for the current frequency point in real time. By maintaining the bearing line and dynamically tracking the drone's position, it quickly extracts the location information of the intersection point on the electronic map with high precision.

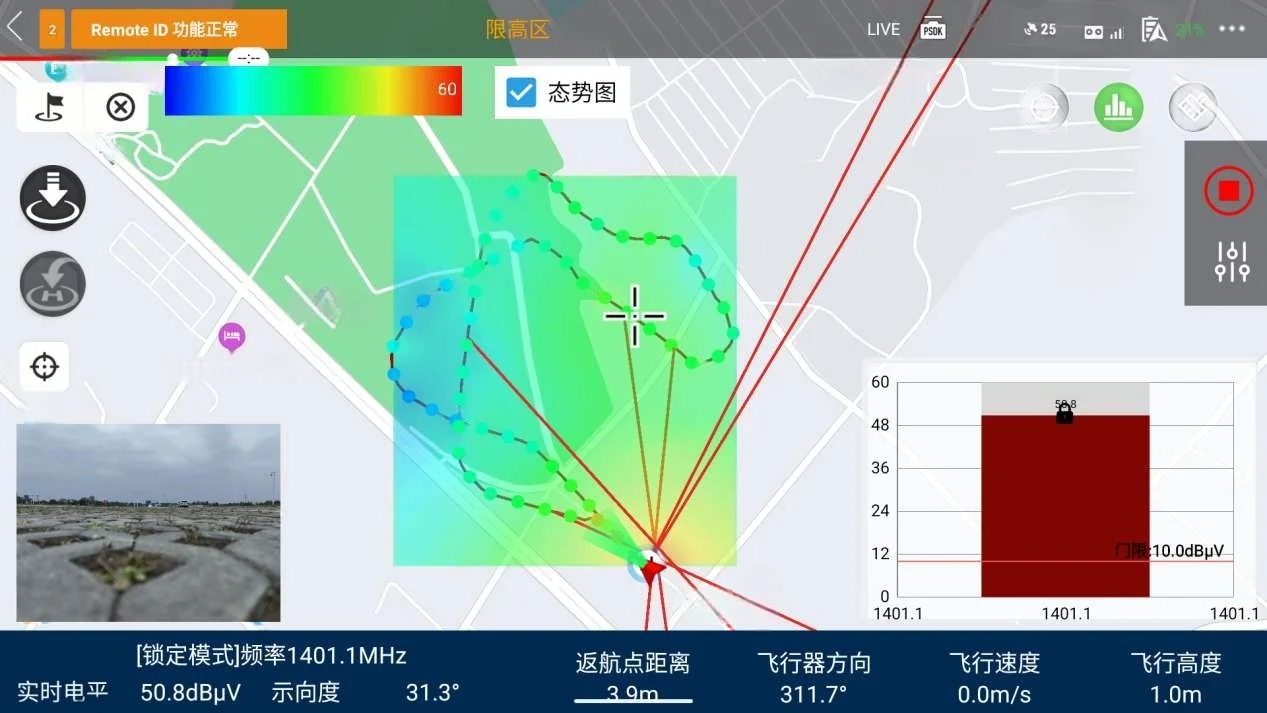

Spectrum Environment Analysis
Based on the collected electromagnetic environment data, combined with geographic location information for precise analysis, the signal distribution of specific frequency points is visualized as a heatmap. It features complete three-dimensional spectrum modeling capabilities for comprehensive signal visibility.

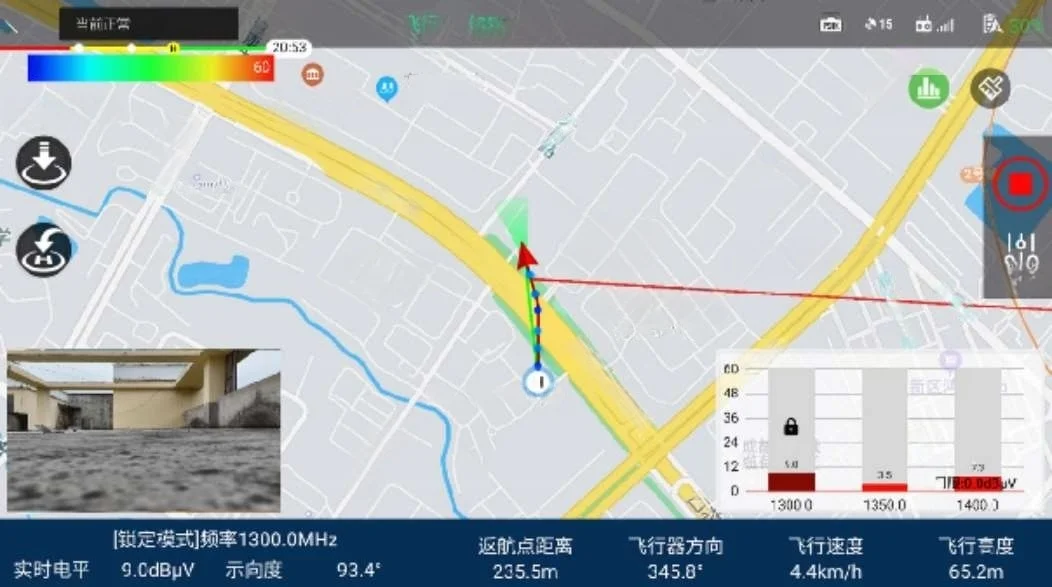

Signal Level Trajectory
Precisely captures frequency signal level variations. The system transmits real-time target frequency data and integrates it with maps, dynamically displaying it as trajectory points. Point colors intelligently adjust based on signal strength values following a visual gradient distribution layout.

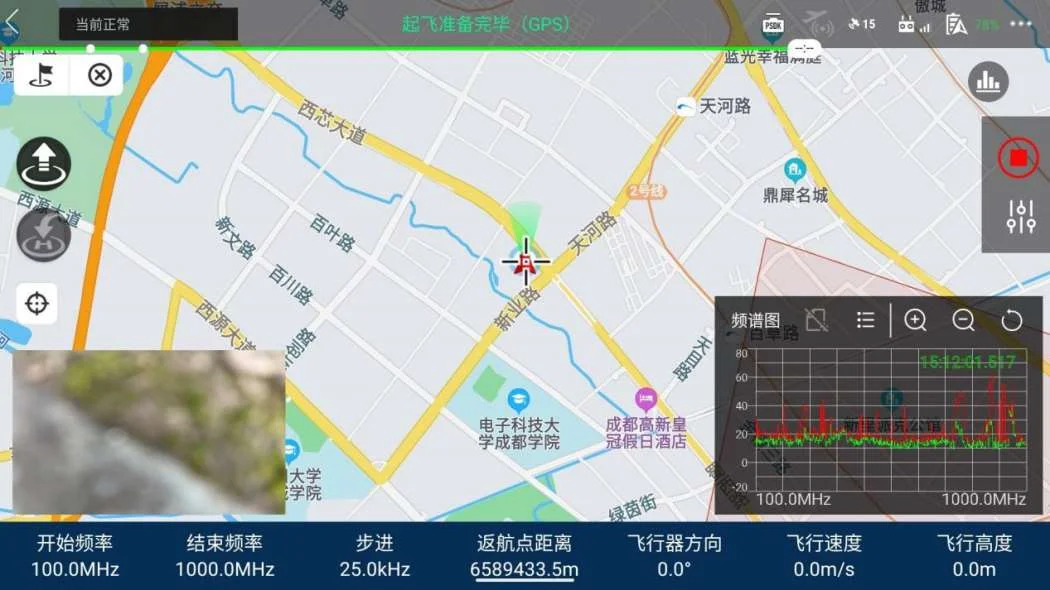

Spectrum Scanning
Provides full-band high-speed scanning coverage, meeting signal detection needs across various application scenarios. Through touchscreen operation, users can easily slide the vertical axis to review signal strength levels, freely select and zoom in on specific frequency ranges precisely.

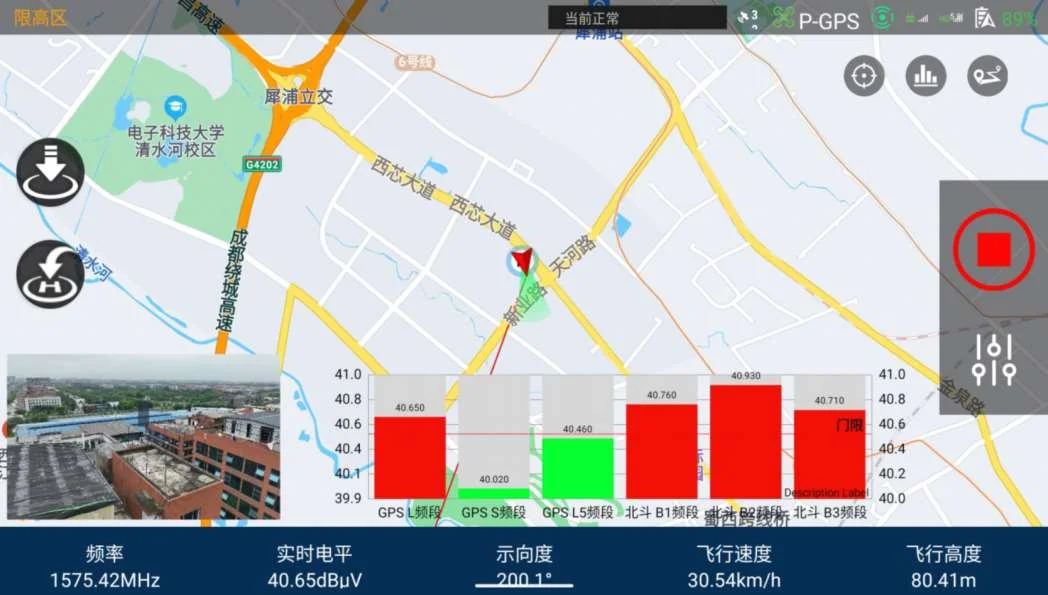

Discrete Scanning
Measures signal strength for one or multiple frequencies simultaneously based on a preset frequency list and analysis bandwidth. In environments with dense urban signal interference or forest canopy obstruction, airborne monitoring signals demonstrate excellent stability and reliability.

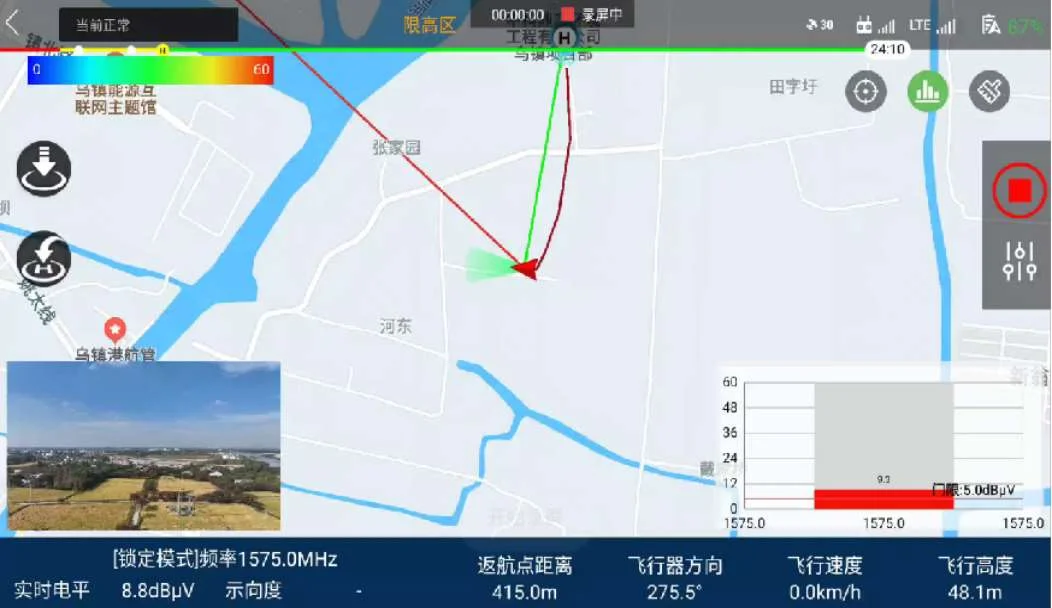

Single-Frequency Direction Finding
Performs rapid in-flight direction-finding executions on targeted static or fixed frequency signals. The onboard processor rapidly calculates signal arrival angles via advanced correlation interferometry methods and plots accurate bearing vectors on map screens.

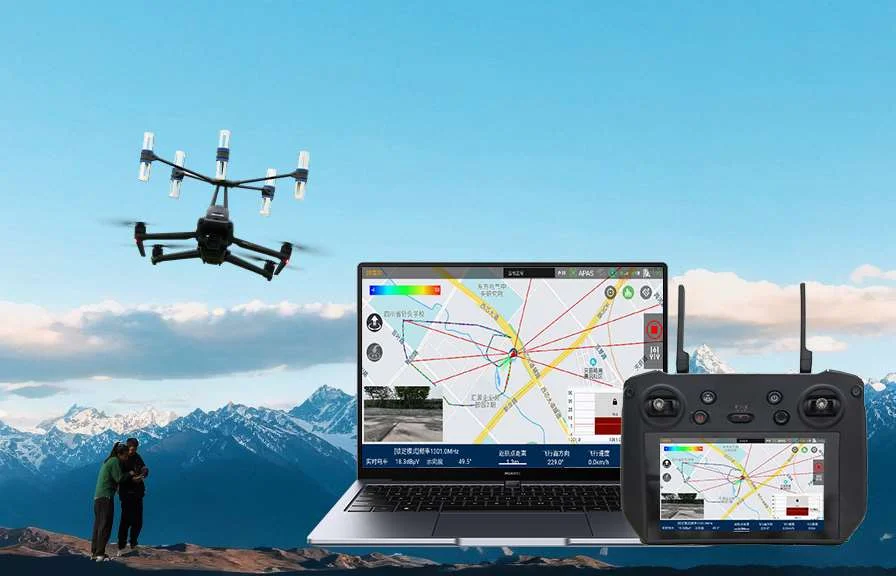

Multi-View Work Mode
Switch configuration modes flexibly via absolute real-time multi-device synchronization. The architecture allows mission parameters and spectral streams to be viewed concurrently across drone controllers, mobile terminals, or centralized field base stations.

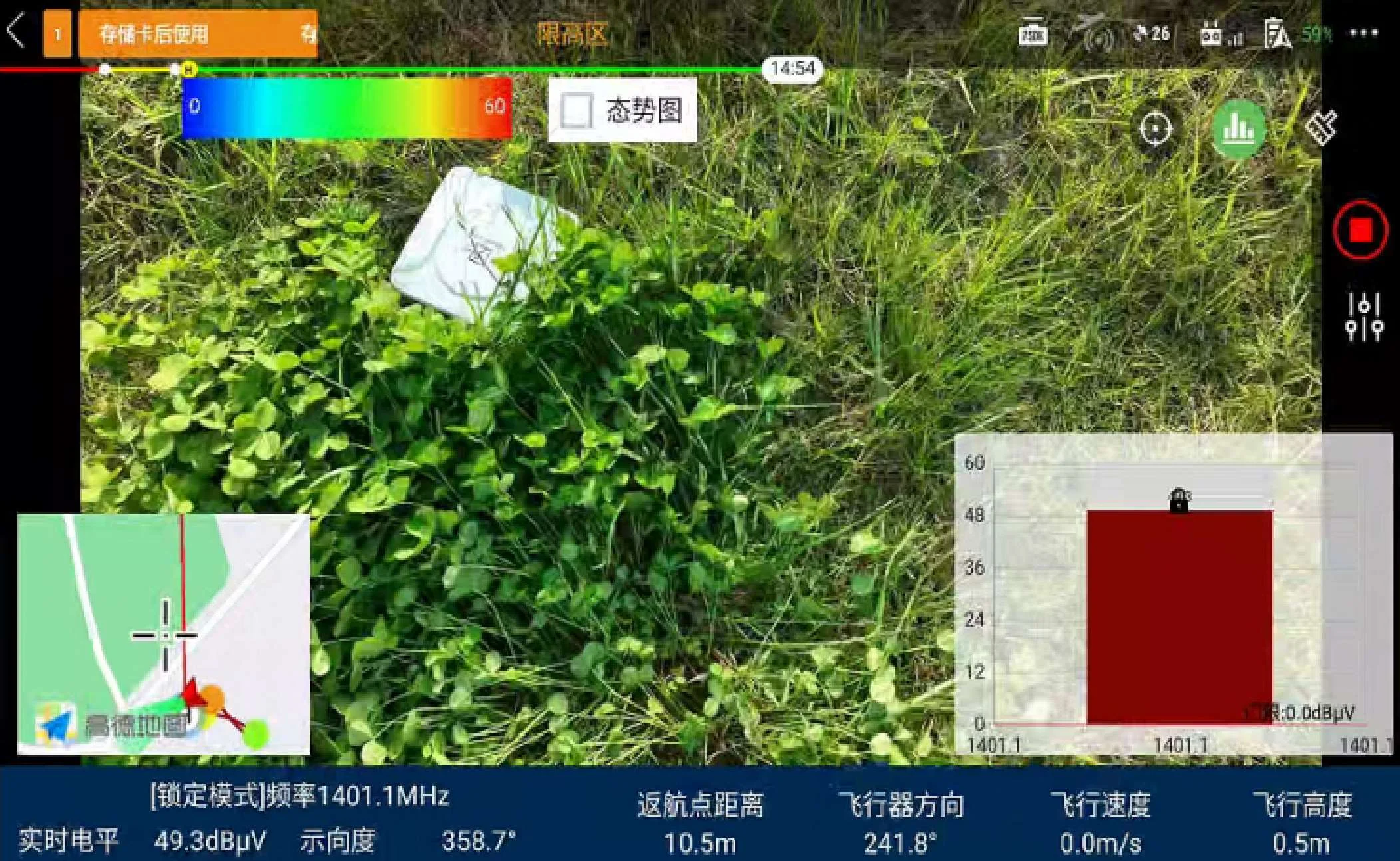

Real-Time Signal Documentation
Leverages drone HD imaging and live video streaming to provide robust signal documentation. With a single click for screenshots or recording, the monitoring interface integrates signal measurements to aerial-document suspect devices' appearance and precise locations.
Technical Specifications
Monitoring Payload
Frequency Range: 100MHz ~ 1GHz
Monitoring Payload
Frequency Range: 1GHz ~ 6GHz
Direction Finding Payload
Frequency Range: 800MHz ~ 2GHz
Direction Finding Payload
Frequency Range: 2GHz ~ 6GHz
DJI Mavic 3 Enterprise
Flight Platform: 1 unit
| Parameters | Technical Requirements & Specifications |
|---|---|
| RF Operational Parameters | |
| Monitoring Frequency Range | 100MHz ~ 6GHz |
| Direction Finding Frequency Range | 800MHz ~ 6GHz |
| Maximum IF Bandwidth | 20MHz |
| DF Methodology | Correlation Interferometer Direction Finding |
| Number of Channels | 2 channels |
| Antenna Elements | 5 elements |
| Performance Accuracy & Sensitivity | |
| Monitoring Sensitivity | ≤ 30 dBuV/m |
| Direction Finding Sensitivity | ≤ 35 dBuV/m |
| Instantaneous Dynamic Range | 70dB |
| Maximum Dynamic Range | 100dB |
| Level Measurement Accuracy | ≤ ±3dB |
| Direction Finding Accuracy | ≤ 5° (R.M.S.) |
| Noise Figure | 3dB |
| Physical & Flight Specifications | |
| Payload Weight | Monitoring: approx. 160g / Direction Finding: approx. 180g |
| Flight Time / Endurance | ≥ 30 minutes |
| Power Consumption | < 6W |
| Dimensions (Monitoring) | 182mm × 65mm × 197mm / 139mm × 65mm × 154mm |
| Dimensions (Direction Finding) | 145mm × 388mm × 388mm / 140mm × 240mm × 240mm |
| GNSS Systems Support | Multi-mode global navigation support: BeiDou, GPS, GLONASS, Galileo |
| Environmental Tolerances | |
| Operating Temperature | -15°C ~ 65°C |
| Humidity | ≤ 70% |
| Wind Resistance | Up to Class 6 wind resistance |
Options & Accessories
| Model | Name / Description |
|---|---|
| Standard RF Payload Packages | |
| Monitoring Payload (Low-Band) | 100MHz ~ 1GHz |
| Monitoring Payload (High-Band) | 1GHz ~ 6GHz |
| Direction Finding Payload (VHF/UHF) | 800MHz ~ 2GHz |
| Direction Finding Payload (Broadband) | 2GHz ~ 6GHz |
| Base Flight Platform | |
| DJI Mavic 3 Enterprise Drone | 1 unit |
