Product Overview

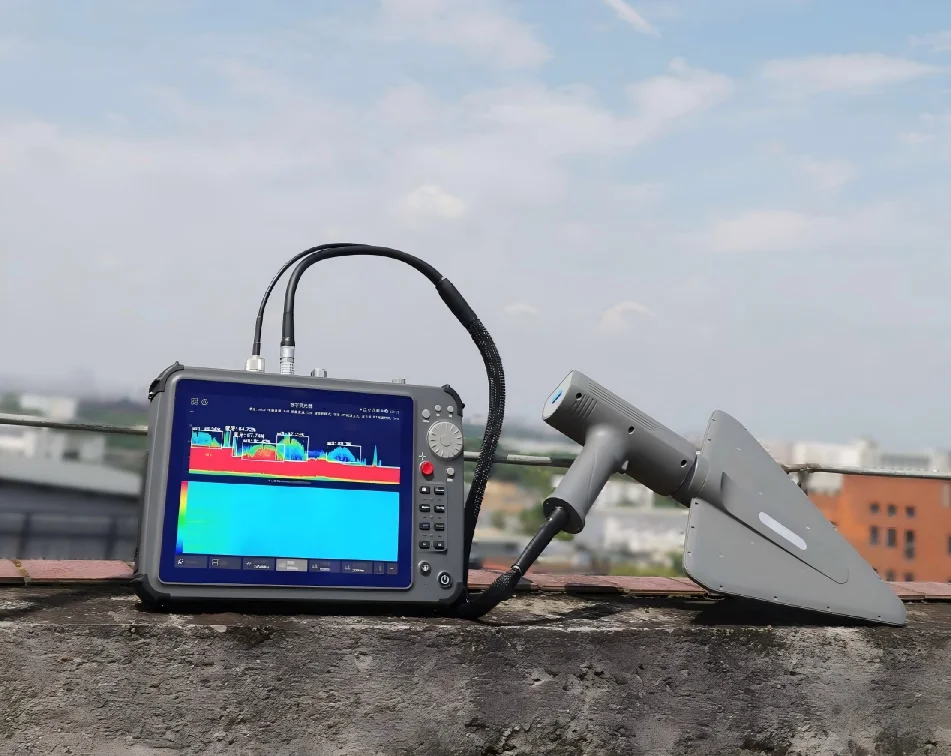

The MCW6900/MCW6910 sets a new benchmark as a highly accurate handheld signal analyzer and multi-band radio frequency monitoring tool. Purpose-built for intensive tactical fieldwork, this flexible wideband receiver platform integrates real-time radio signal monitoring, automated direction finding, advanced signal intelligence analysis, and real-time network protocol decoding into a single, light-weight enclosure.
Featuring a master-control host synchronization environment and AI-driven recognition logic, this standalone rf receiver architecture offers ultra-wideband parallel trace sweeps to instantly lock onto anomalous spectral emissions. The hardware implements a dynamic dual-battery module layout, ensuring uninterrupted mission performance during hot-swapping procedures while deep magnesium-aluminum alloy shielding coordinates exceptional structural electromagnetic compatibility.
Whether deployed by spectrum compliance enforcement teams for close-proximity signal mapping or leveraged by critical infrastructure defense units for complex GNSS interference hunting, the MCW6900 series wideband receiver delivers an optimal data-collection footprint across any terrain profile. Contact our factory directly for custom configuration support, official datasheets, or competitive factory pricing quotes.
Key Features
Wide Monitoring Range
Base configuration: 20MHz-8GHz; Frequency extensions: 8kHz~20MHz, 8GHz~26.5GHz, 26.5GHz~40GHz.
Lightweight & Ergonomic Design
Lightweight magnesium-aluminum alloy enclosure with high EMI protection. Weight (dual batteries): MCW6900 ≤3.0kg, MCW6910 ≤ 3.1kg.
Arbitrary Key Configuration
X1, X2 Keys: Fully configurable function keys or batch processing keys. Batch Processing Multi-Function Key: Intelligent one-touch operations.
Advanced Power Management
Extended Endurance: ≥6.5 hours. Dual-Battery Design: Hot-swappable batteries during missions. Carry only spare batteries for continuous operation.
Host Control Mode
The MCW6900/MCW6910 can be set as a host to synchronize radio settings with slave devices, enabling unattended multi-device coordinated monitoring.
Unique Frequency Input
Preset specific frequency bands with dedicated direct-access keys, eliminating manual numeric input. Frequency preset keys are fully customizable.
Application Scenarios
Radio Signal Monitoring
Achieves 8kHz-40GHz continuous monitoring via low and high frequency extensions. Features a 400GHz/s parallel scanning speed for instantaneous signal capture, driven by a high-performance Digital Phosphor Spectrum (DPS) core for advanced co-channel signal separation tasks.
Perimeter Monitoring & Patrol System
Utilizes a dual-battery switching network allowing field personnel to perform perimeter patrols using spare battery packs alone. Hot-swap tracking configurations seamlessly without interrupting real-time IQ or spectrum recording missions to automate enforcement.
Discreet Signal Tracking & Monitoring
Pairs with optional ultra-wideband antennas to easily fit the analyzer host inside standard laptop bags or field briefcases. Supports screen-off stealth modes, automatic target logging, and fast raw I/Q telemetry exports for offline demodulation analysis.
Core System Functions

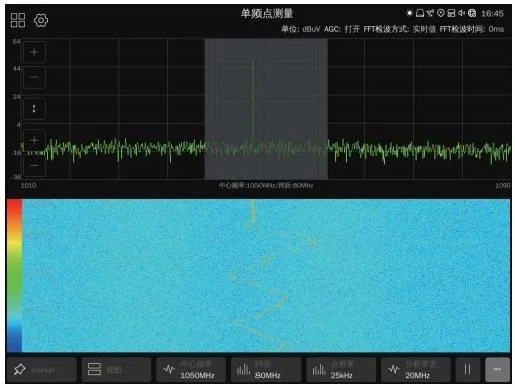

Spectrum Scanning
Rapid scanning/measurement of continuous bands for spectrum usage assessment. Real-time dynamic spectrum display with spectrogram/waterfall views. Scans pre-defined bands to identify legal/illegal signals. Supports peak, average, and minimum detection.

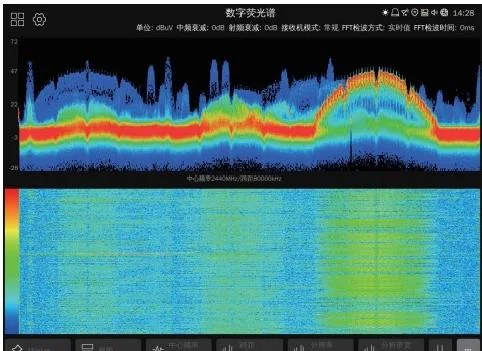

Digital Phosphor Spectrum
It can capture signals in real time without loss and continuously display the frequency domain variation status of signals. It allows viewing of stable small signals masked by large signals and has the capability to monitor co-frequency signals.

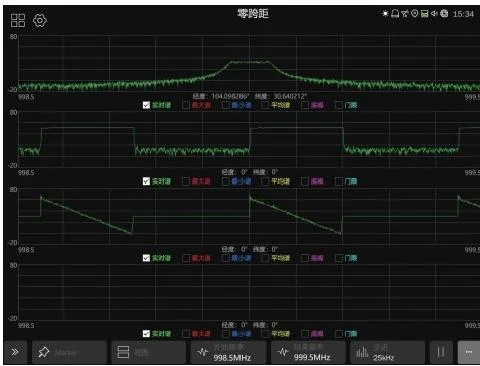

Time Domain Analysis (Zero Span)
It supports the analysis and display of a signal's instantaneous level, instantaneous frequency, and instantaneous phase. It enables the measurement of parameters such as level, pulse width, and period for burst signals like radar pulses.

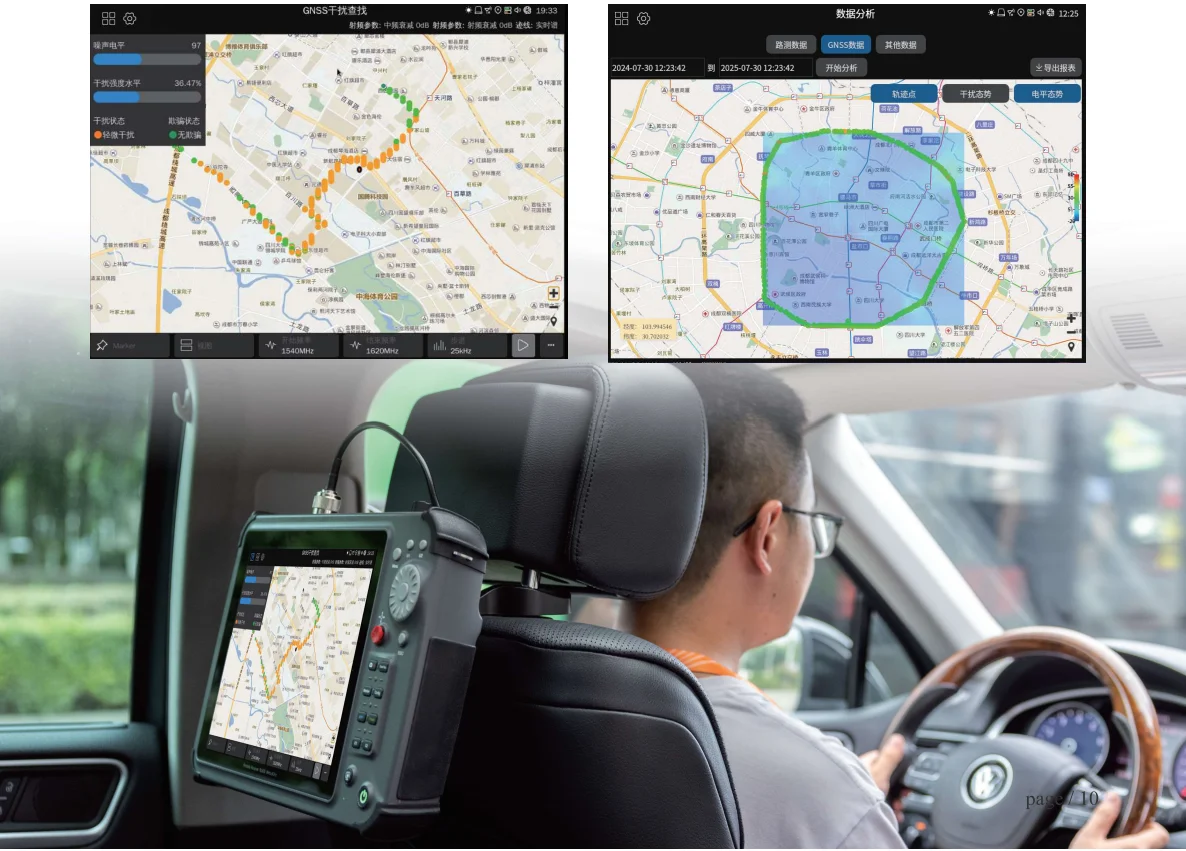

Road Testing
The MCW6900/MCW6910 supports the "one-click" full-band drive test function. Spectrum scanning and GNSS location information are automatically recorded and matched; the device can independently conduct the full-process, full-band drive test without manual intervention or continuous monitoring.

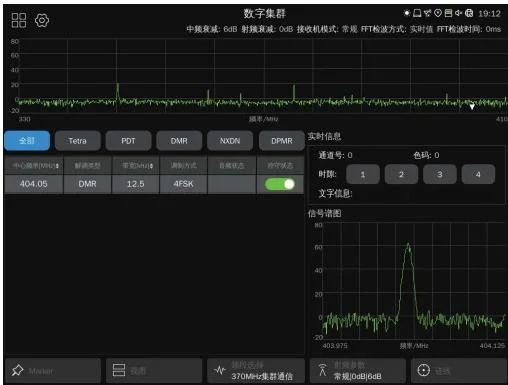

Digital Trunking
The digital trunking signal demodulation function focuses on the full-process monitoring and processing of signals under systems such as Tetra, DMR, DPMR, and NXDN. It can capture such signals in real time, perform accurate demodulation based on signal characteristics, extract voice and data information, and realize monitoring and analysis.

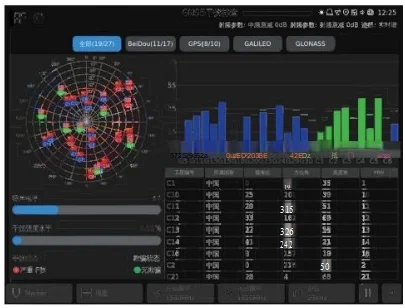

GNSS Interference Detection and Localization
It is used for approaching and investigating GNSS interference devices in civil aviation and public communication fields; it has a built-in high-sensitivity receiver and GNSS interference analysis algorithm; it supports multi-satellite and multi-mode operations, including multiple GNSS satellite types such as GPS, BD, GLONASS, Galileo, and QZSS.

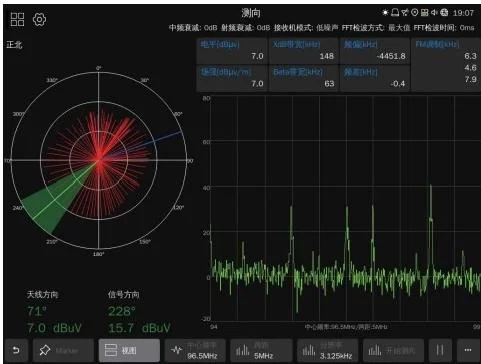

Single-Frequency Direction Finding (DF)
Performs direction finding on a specified known signal while monitoring its IF spectrum and amplitude profile over a specified time period. The system statistically calculates and displays the bearing probability distribution throughout the measurement duration.
Optional Antennas

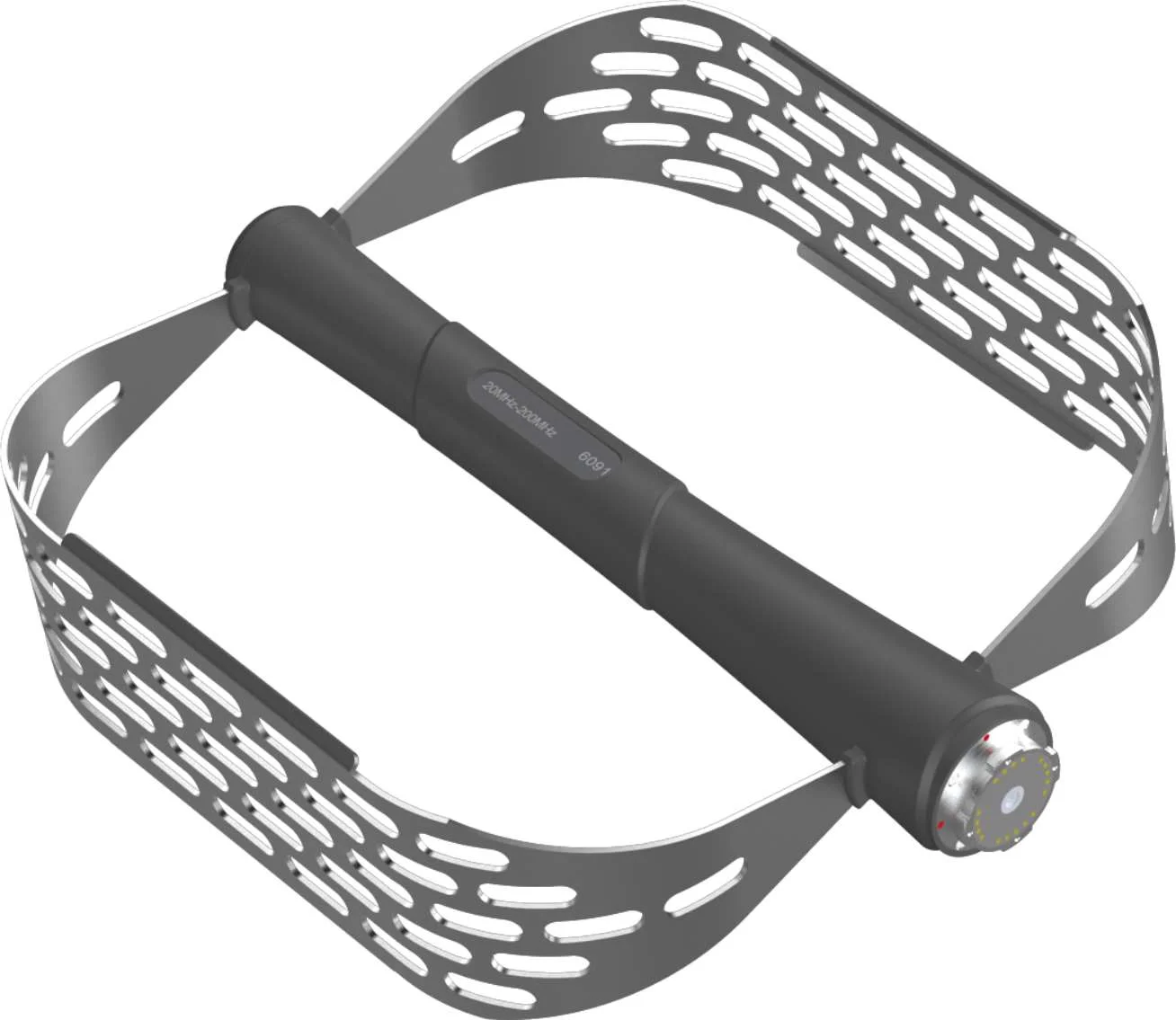

Frequency Band Range:20MHz~200MHz
SKU:MCW6091

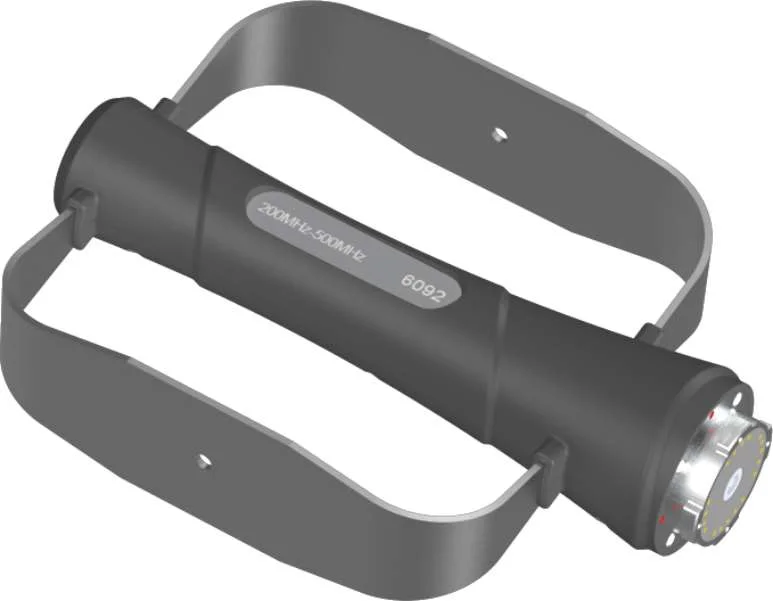

Frequency Band Range:200MHz~500MHz
SKU:MCW6092

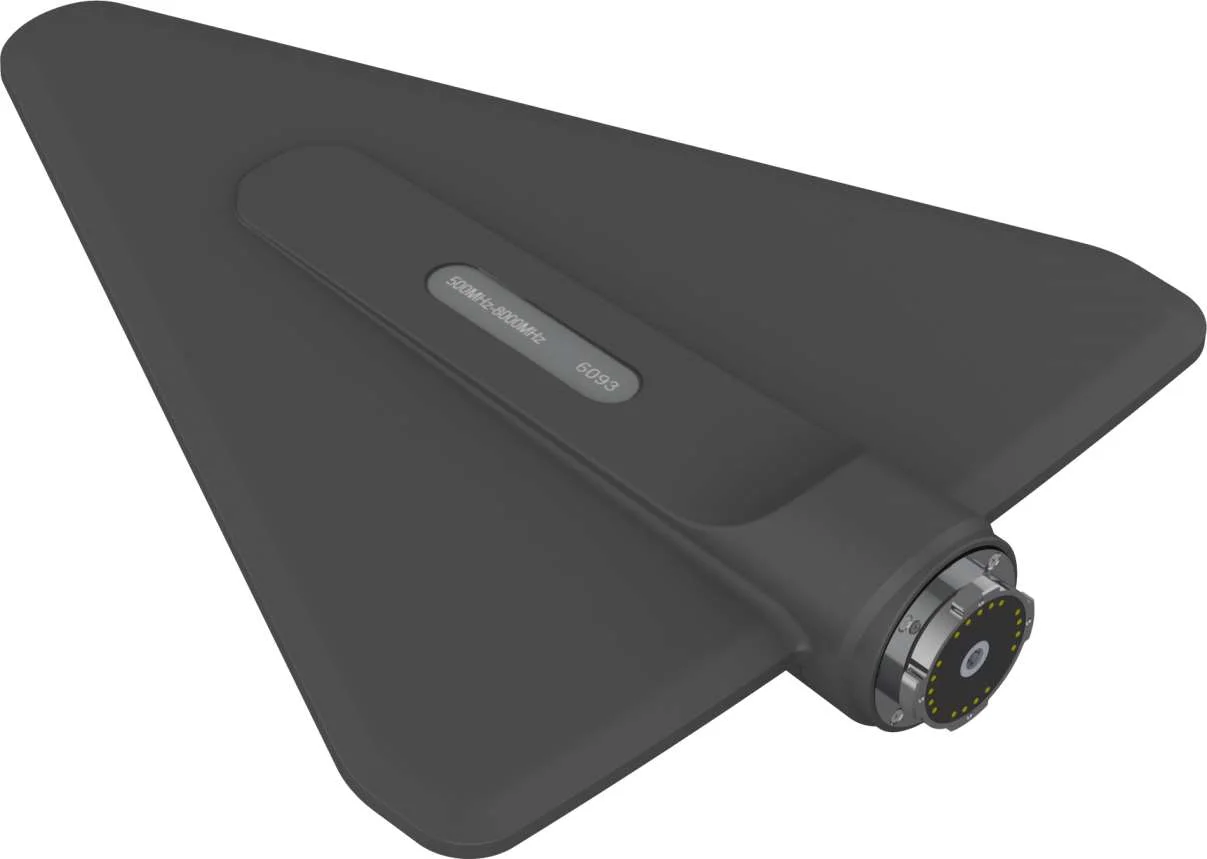

Frequency Band Range:500MHz~8GHz
SKU:MCW6093

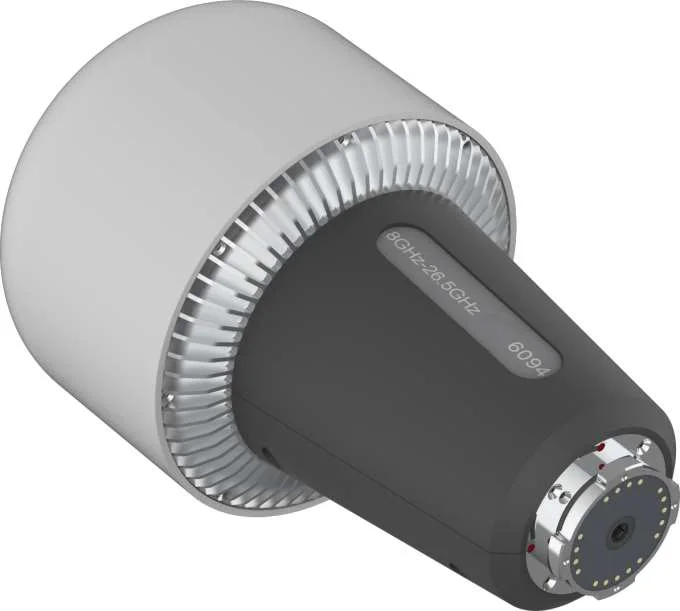

Frequency Band Range:8GHz~26.5GHz
SKU:MCW6094

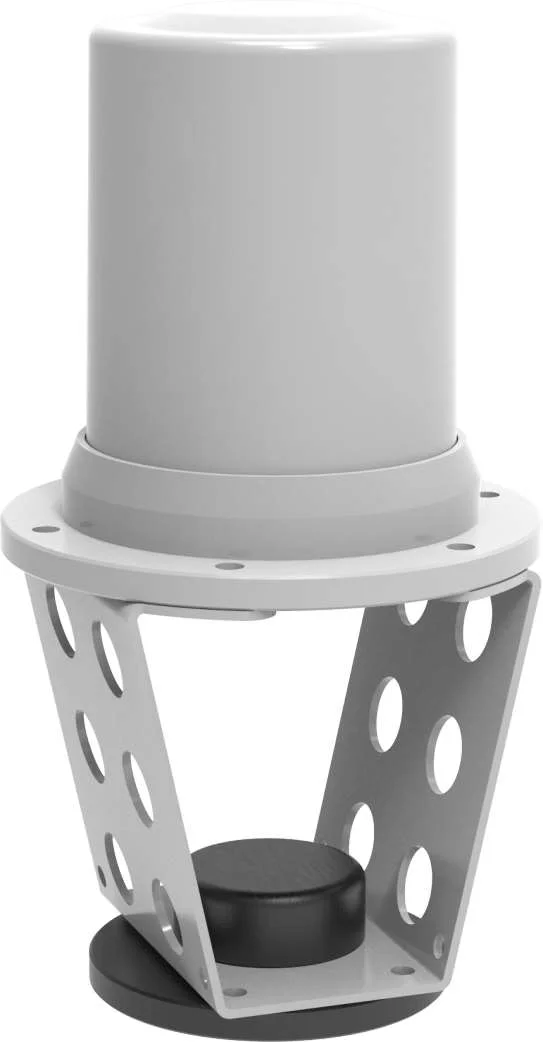

Frequency Band Range:8GHz~26.6GHz
SKU:MCW6006-CZ

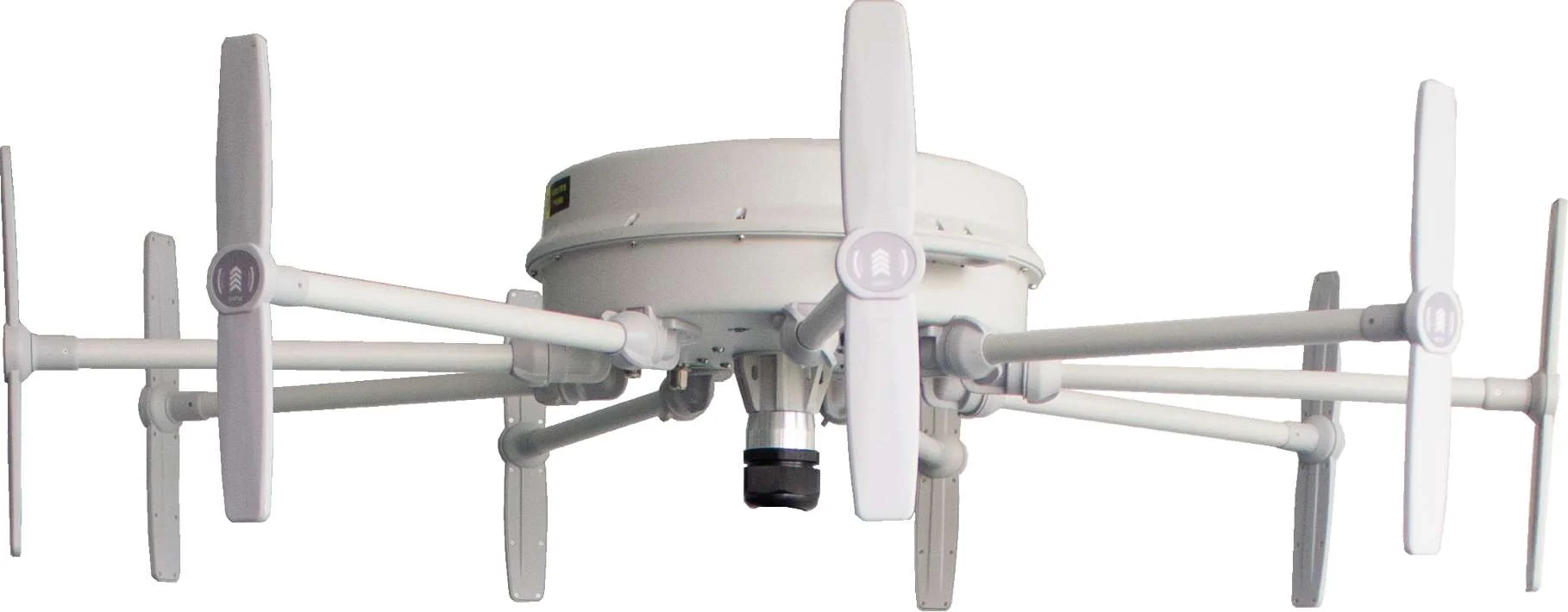

Frequency Band Range:20MHz~8GHz
SKU:MCW930
Frequency Band Range:20MHz~200MHz
SKU:MCW6091
Frequency Band Range:200MHz~500MHz
SKU:MCW6092
Frequency Band Range:500MHz~8GHz
SKU:MCW6093
Frequency Band Range:8GHz~26.5GHz
SKU:MCW6094
Frequency Band Range:8GHz~26.6GHz
SKU:MCW6006-CZ
Frequency Band Range:20MHz~8GHz
SKU:MCW930
| Technical Parameter Group | Requirement & Standard Values |
|---|---|
| RF & Spectrum Characteristics | |
| Frequency Range | 8 kHz ~ 40 GHz (Covers all bands) |
| Maximum Analysis Bandwidth | 120 MHz real-time bandwidth |
| Spectrum Scan Speed | Up to 120 GHz/s high-speed sweep |
| Physical & Display Specifications | |
| Display Interface | 8.4-inch capacitive touch screen (high brightness) |
| Data Storage Capacity | 256GB SSD (Standard) / Up to 8TB (Optional expansion) |
| System Total Weight | ≤ 3.0 kg (Including battery pack) |
| Enclosure Material | High-strength Magnesium-Aluminum Alloy |
| Power & Environmental Tolerances | |
| Battery Endurance | ≥ 4 Hours (Intelligent dual-battery switching design) |
| Operating Temperature | -20°C ~ +55°C (Designed for outdoor field tasks) |
| Data Interfaces | LAN, Type-C, USB 3.0, TF Card slot, Audio out |
