Wideband Microwave Tuners
1 – 40 GHz · Single / Dual Channel · RS232 / LAN Control
Product Series Overview
High-performance downconverters covering 1 GHz to 40 GHz, featuring high gain, low phase noise, and flexible digital control. Ideal for wideband EW, instrumentation, and communication systems.
- Frequency ranges: 1–18 GHz / 18–40 GHz
- Single or dual channel configurations
- RS232 / LAN (Ethernet) remote control
- Compact bench-top / rack-mount designs
- Built-in forced air cooling

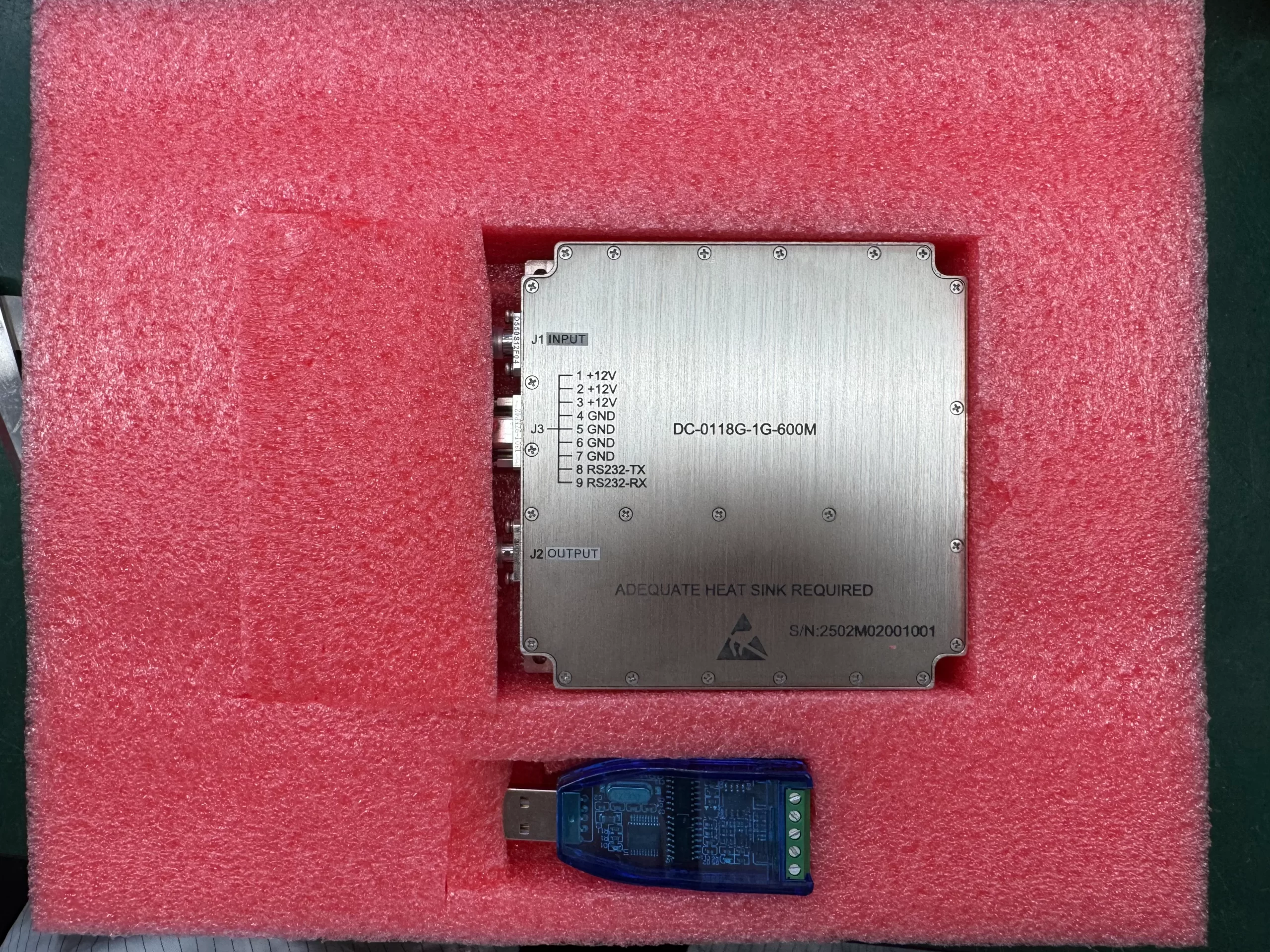

MCWDC-0118G-1G-600M
Wideband Microwave Tuner · Single Channel
1–18 GHz RF input, 1.2 GHz IF output. High gain (50–60 dB) and 10 MHz tuning step. Designed for test & measurement and broadband receivers.
RF Input Freq1 – 18 GHz
IF Output Freq1.2 GHz (typ)
IF Bandwidth500 / 700 MHz
Power Gain50 – 60 dB
Noise Figure20 dB
Input P1dB-20 dBm
Tuning Resolution10 MHz
Input/Output VSWR2:1 / 1.6:1
Max Input (no damage)+3 dBm
Operating Voltage+12 VDC
Power Consumption15 W

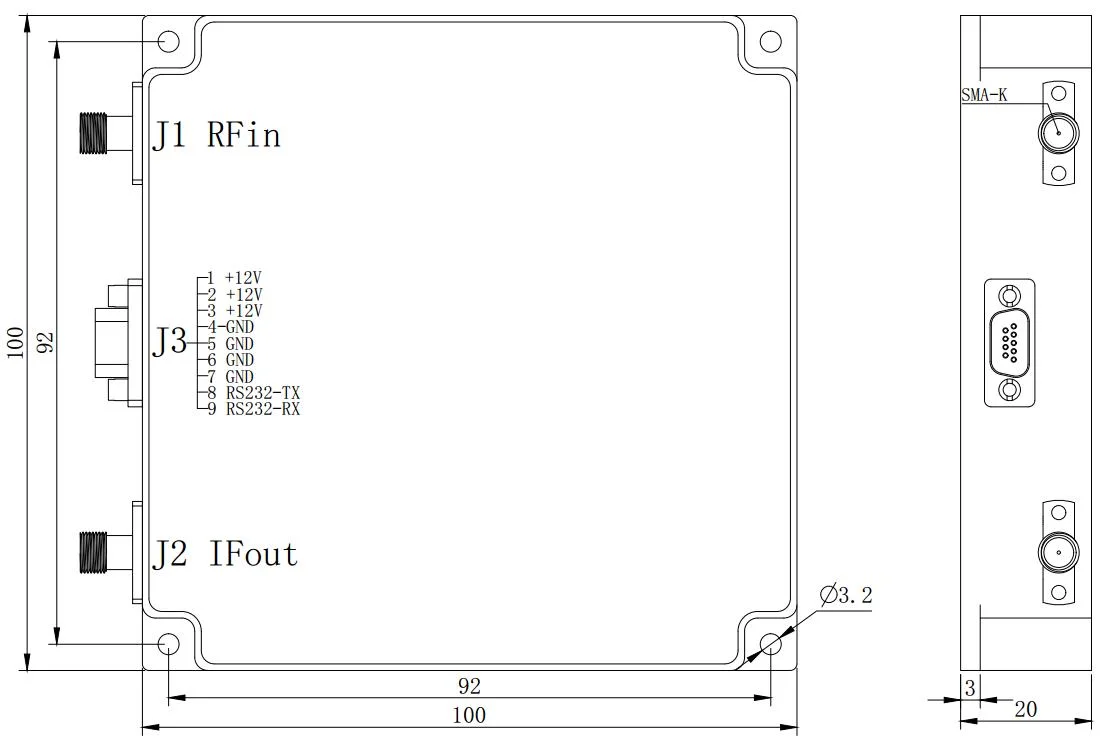

▸ Interfaces: RF Input (SMA f) · RF Output (SMA f) · Control: RS232 (9‑pin, +12V/GND/TX/RX) · Cooling: internal forced air
Request Quote

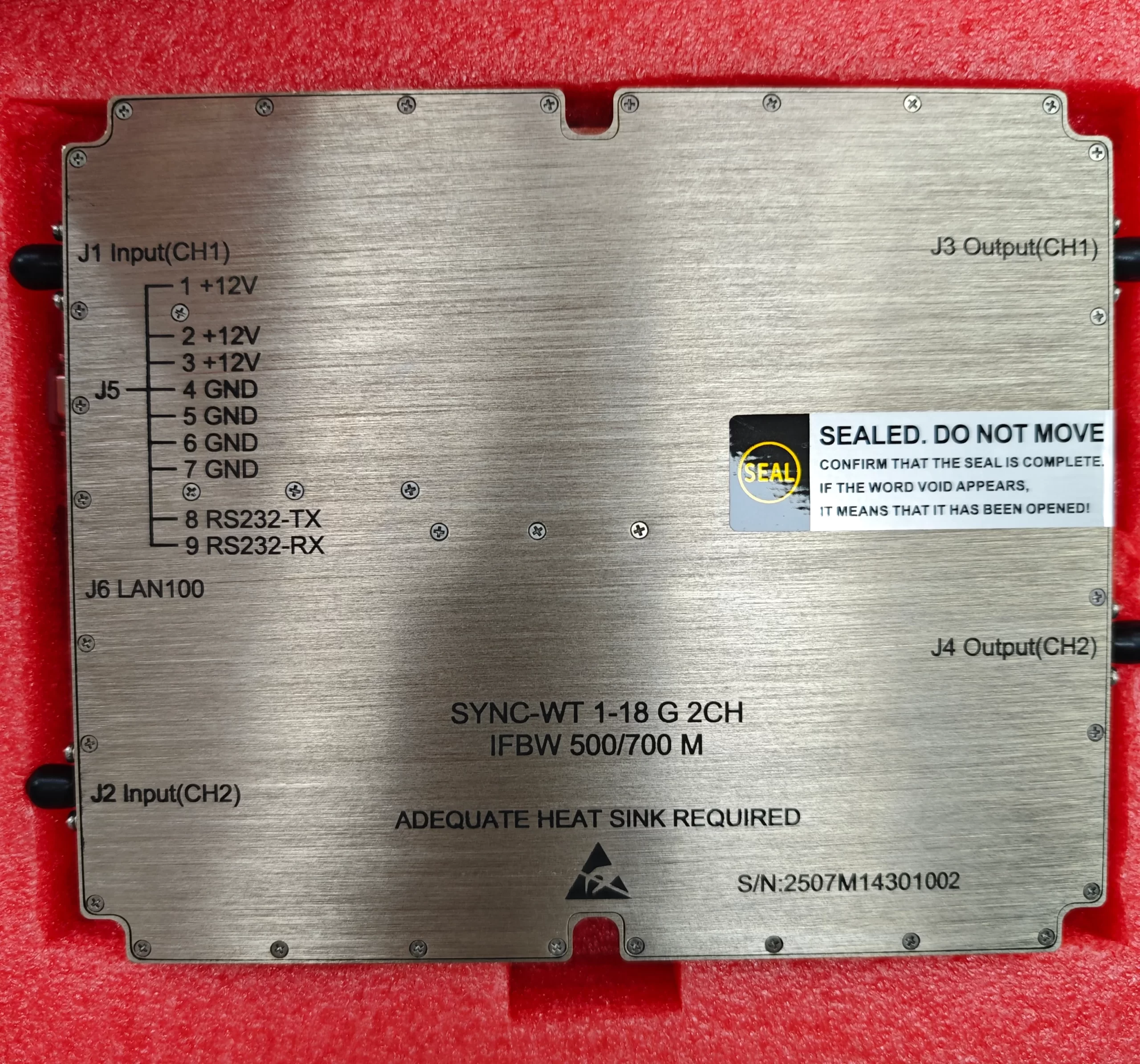

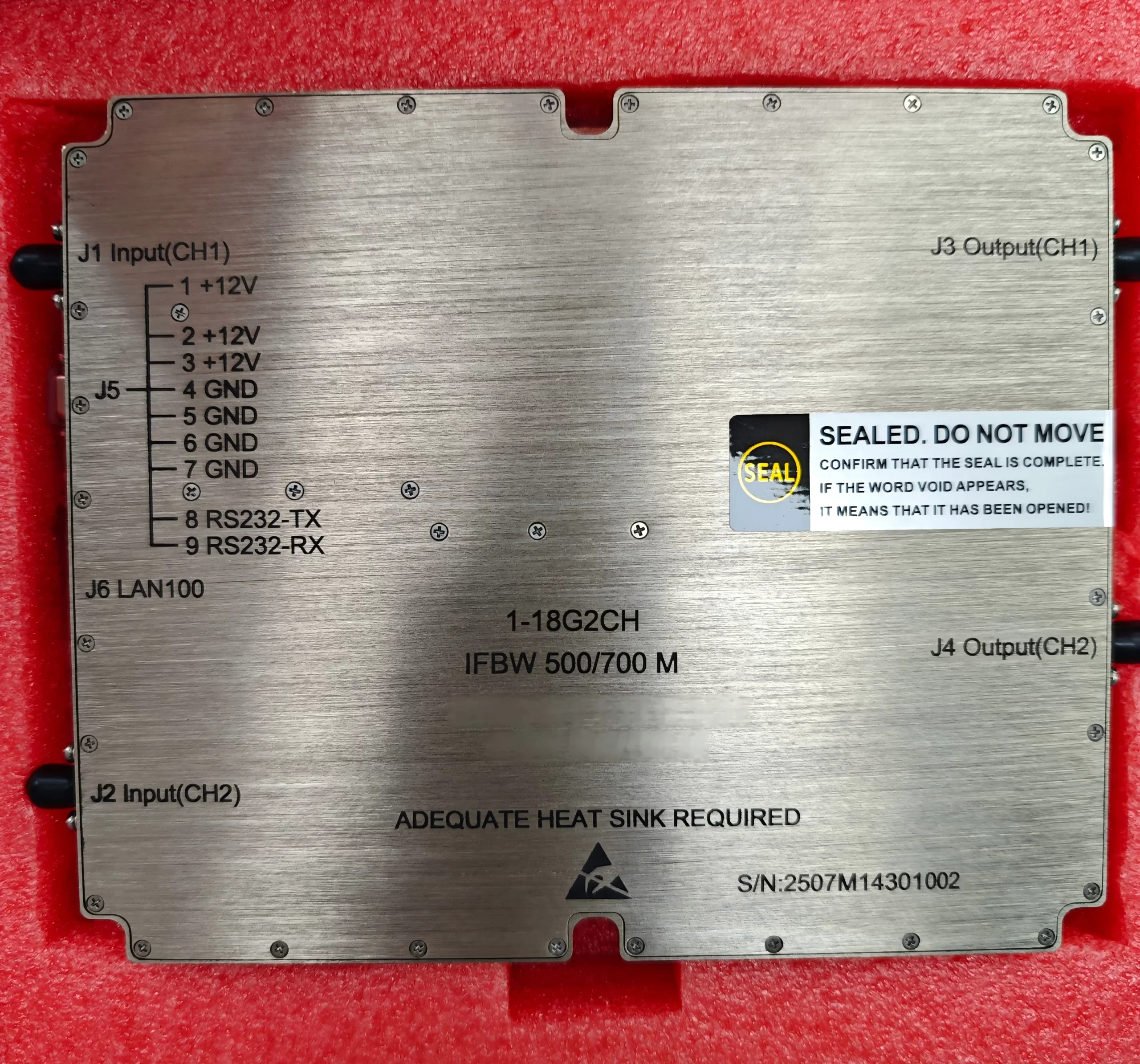

SYNC-WT 1-18G 2CH
Dual‑Channel Frequency Converter · 1–18 GHz
Two independent channels, 1–18 GHz RF to 1/1.2 GHz IF. Superior noise figure (8‑10 dB) and 1 MHz tuning resolution. LAN + RS232 control.
RF Input Freq1 – 18 GHz
IF Center Freq1 / 1.2 GHz
IF Bandwidth500 / 700 MHz
Power Gain55 dB (typ)
Noise Figure8 – 10 dB
Input P1dB-20 dBm
Tuning Resolution1 MHz
Spurious Suppression50 dBc
Input/Output VSWR2:1 / 1.6:1
Max Input (no damage)+3 dBm
Operating Voltage+12 VDC
Power Consumption30 W
▸ Interfaces: CH1 (J1 Input / J3 Output) · CH2 (J2 Input / J4 Output) · Control: J5 (+12V, GND, RS232‑TX/RX) · J6 LAN100 · SMA female RF ports
Request Quote

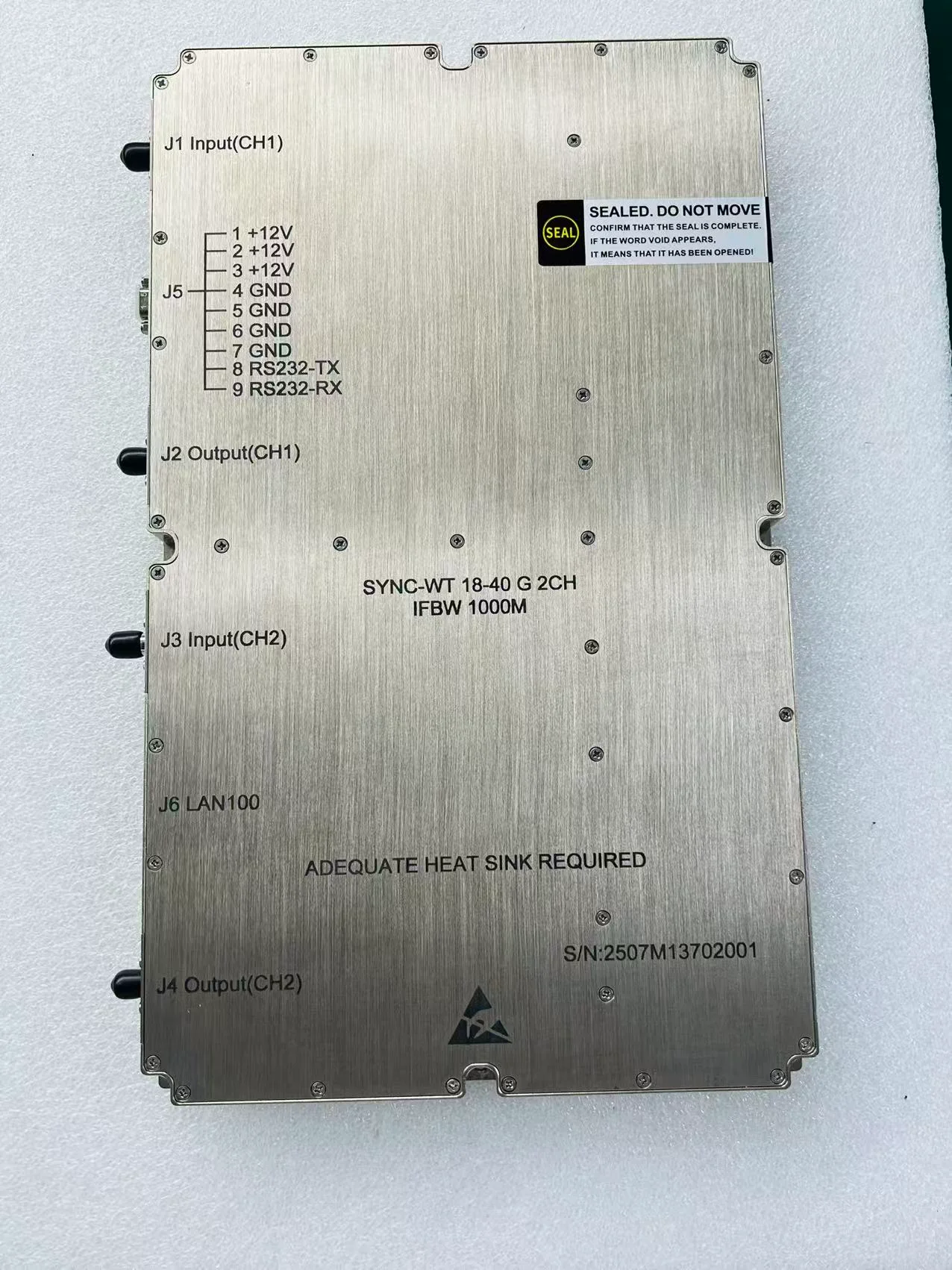

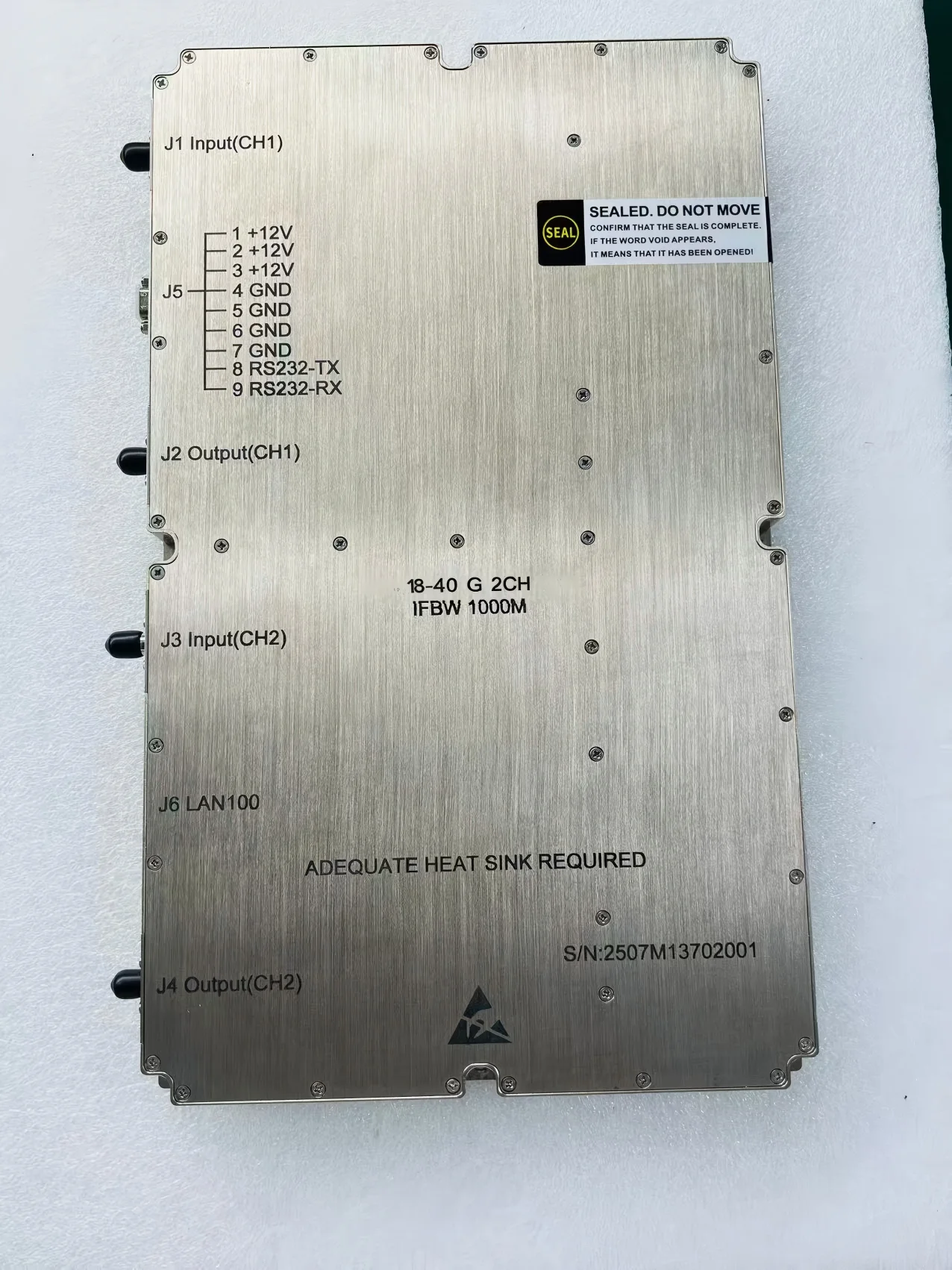

MCWDC-1840G-1G-1G-2CH
SYNC-WT 18‑40G 2CH · Dual‑Channel
High‑band dual channel tuner covering 18–40 GHz with 1 GHz IF bandwidth. Ideal for K/Ka‑band applications. RS232 + LAN remote control.
RF Input Freq18 – 40 GHz
IF Bandwidth1000 MHz (1 GHz)
Number of Channels2
Gain (typical)≥ 50 dB (estimated)
Input P1dB-20 dBm (ref. similar)
Input/Output Imped.50 Ω
Input VSWR2:1
Operating Voltage+12 VDC
Power Consumption~30 W (est.)
CoolingInternal forced air

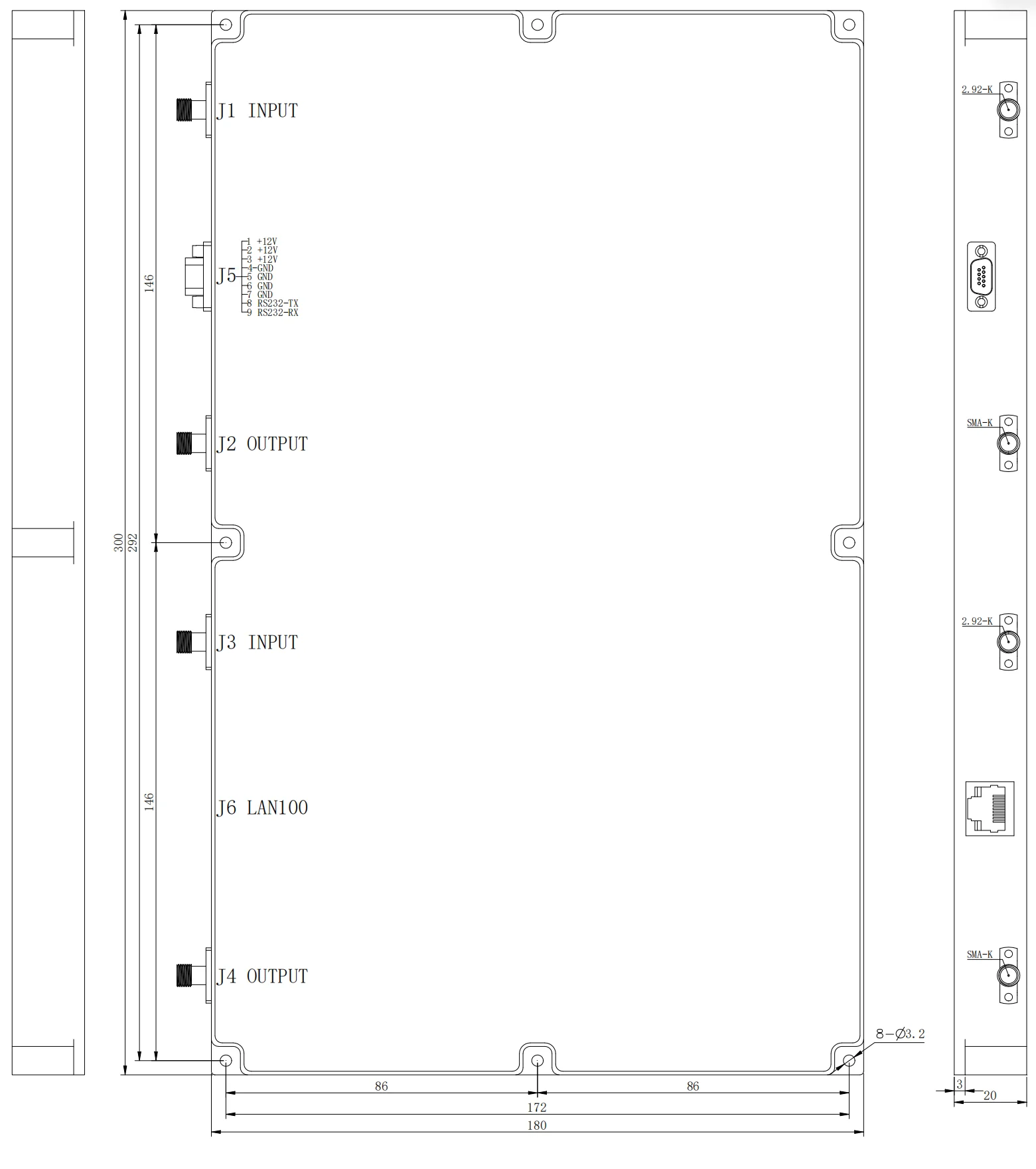

▸ Interfaces: CH1 Input J1 / Output J2 · CH2 Input J3 / Output J4 · Control J5 (+12V, GND, RS232) · J6 LAN100 · SMA (2.92 mm compatible) · Adequate heatsink required
Request Quote
