X-band 1D Phased Array Antenna
One-Dimensional Phase Scanning Solutions with Integrated T/R
Product Introduction
Our X-band 1D phased array antennas provide precise one-dimensional beam steering with integrated T/R components, wave control, and single-pulse networking. Available in 32, 48, and 64-channel configurations, they offer reliable performance for applications requiring elevation or azimuth scanning.
- One-dimensional phase scanning with integrated T/R components
- Single-pulse networking for precision tracking
- Compact and scalable designs from 32 to 64 channels
- 25% transmit duty cycle with high power handling
- Real-time BIT monitoring and energy-saving cooling
X-band 32-channel 1D Phased Array
One-dimensional phase scanning, integrating T/R components, wave control, and single-pulse networking.
Freq BandX-band
EIRP≥ 68 dBm
G/T (normal)≥ -1.2 dB/K
Tx Duty Cycle25%
X-band 48-channel 1D Phased Array
One-dimensional phase scanning, integrating T/R components.
Freq BandX-band
EIRP≥ 71.5 dBm
G/T (normal)≥ 0.5 dB/K
Tx Duty Cycle25%

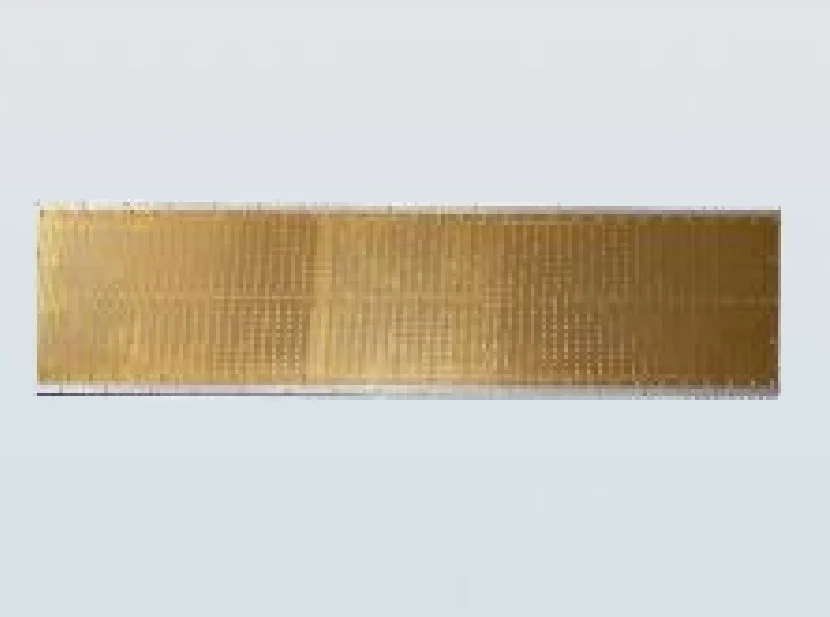

X-band 64-channel 1D Phased Array
One-dimensional phase scanning, integrating T/R components.
Freq BandX-band
EIRP≥ 74 dBm
G/T (normal)≥ 1.7 dB/K
Tx Duty Cycle25%
