Phased Array Antennas

X-band 64-channel 2D Phased Array Antenna (8×8)

Two-dimensional phase scanning, integrating T/R components, wave control, and single-pulse networking, with an array size of 8×8.

• Freq Band: X-band
• EIRP (French): ≥ 67 dBm
• G/T (normal): ≥ -5.5 dB/K
• Tx Duty Cycle: 25%

X-band 128-channel 2D Phased Array Antenna (16×8)

Two-dimensional phase scanning, integrating T/R components, wave control, and single-pulse networking, with an array size of 16×8.

• Freq Band: X-band
• EIRP (French): ≥ 73 dBm
• G/T (normal): ≥ -2.5 dB/K
• Tx Duty Cycle: 25%

First gen [2020]

Second Gen [2022]

Third Gen [2023]

Fourth Gen [2024]

X-band 256-channel 2D Phased Array Antenna (16×16)

The X256 has been iteratively upgraded to its fourth-generation product (2020-2024), offering improved performance and higher reliability.

• Freq Band: X-band
• EIRP (French): ≥ 79 dBm
• G/T (normal): ≥ 0.5 dB/K
• Tx Duty Cycle: 25%

X-band 384-channel 2D Phased Array Antenna

Horizontal array size is 24×16 while the vertical array size is 16×24. Two-dimensional phase scanning, integrating T/R components.

• Freq Band: X-band
• EIRP (French): ≥ 82.5 dBm
• G/T (normal): ≥ 2 dB/K
• Tx Duty Cycle: 25%

X-band 512-channel 2D Phased Array Antenna (32×16)

Two-dimensional phase scanning, integrating T/R components, wave control, and single-pulse networking, array size 32×16.

• Freq Band: X-band
• EIRP (French): ≥ 85 dBm
• G/T (normal): ≥ 3.5 dB/K
• Tx Duty Cycle: 25%

First gen [2019]

Second Gen [2021]

Third Gen [2023]

Fourth Gen [2025]

X-band 576-channel 2D Phased Array Antenna (24×24)

From 2019 to 2025, the X576 product has undergone four generations of upgrades, delivering enhanced performance and greater reliability.

• Freq Band: X-band
• EIRP (French): ≥ 85.5 dBm
• G/T (normal): ≥ 4 dB/K
• Tx Duty Cycle: 25%

X-band 1024-channel 2D Phased Array Antenna (32×32)

Two-dimensional phase scanning, integrating T/R components, wave control, and single-pulse networking.

• Freq Band: X-band
• EIRP (French): ≥ 91 dBm
• G/T (normal): ≥ 6.5 dB/K
• Tx Duty Cycle: 25%

X-band 1536-channel 2D Phased Array Antenna (32×48)

Two-dimensional phase scanning, integrating T/R components, wave control, array size 32×48.

• Freq Band: X-band
• EIRP (French): ≥ 94 dBm
• G/T (normal): ≥ 8 dB/K
• Tx Duty Cycle: 25%

X-band 4096-channel 2D Phased Array Antenna (64×64)

Two-dimensional phase scanning, integrating T/R components, wave control, array size 64×64.

• Freq Band: X-band
• EIRP (French): ≥ 103 dBm
• G/T (normal): ≥ 11.5 dB/K
• Tx Duty Cycle: 25%

X-band 256-channel Linear Array DBF (16×1 per array)

Azimuth plane: 16 channels, analog active phase scanning. Lateral view: 16 channels, DBF multi-beam simultaneous imaging.

• Freq Band: X-band
• EIRP (French): ≥ 79 dBm
• G/T (normal): ≥ 0.5 dB/K
• Tx Duty Cycle: 25%

X-band 512-channel Linear Array DBF

Anterior plane: 32 channels. Lateral view: 16 channels, DBF multi-beam simultaneous imaging.

• Freq Band: X-band
• EIRP (French): ≥ 85 dBm
• G/T (normal): ≥ 3.5 dB/K
• Tx Duty Cycle: 25%

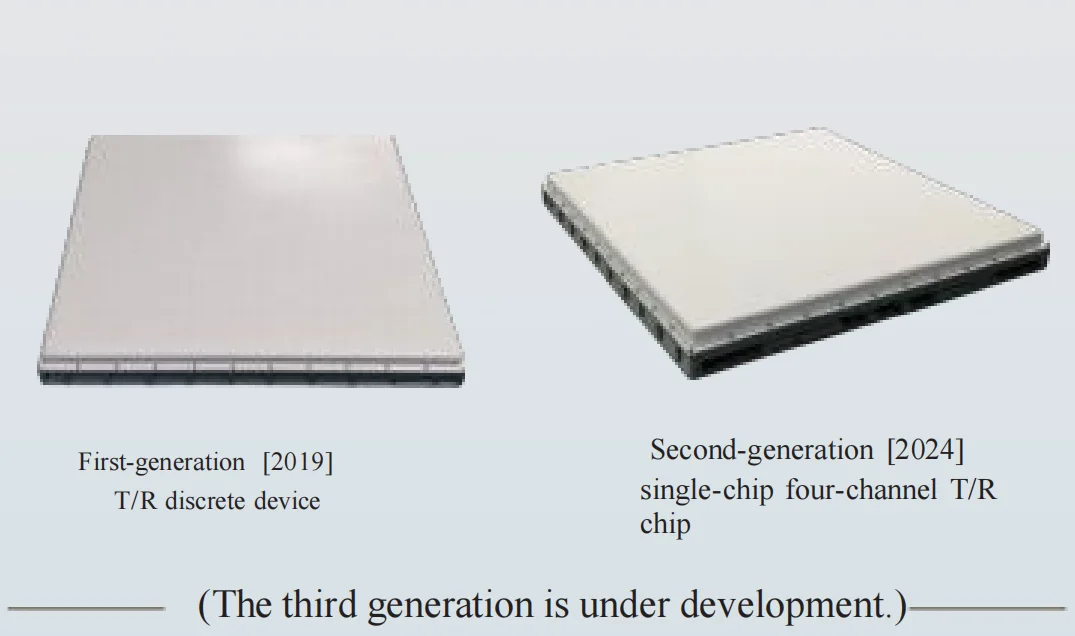

X-band 1024-channel Linear Array DBF

Anterior plane: 32 channels. Anterior-posterior view: 32 channels, DBF multi-beam simultaneously.

• Freq Band: X-band
• EIRP (French): ≥ 91 dBm
• G/T (normal): ≥ 6.5 dB/K
• Tx Duty Cycle: 25%

X-band 960-channel Linear Array DBF (24×1)

Anterior plane: 48 channels. Anterior-posterior view: 20 channels, DBF multi-beam simultaneously.

• Freq Band: X-band
• EIRP (French): ≥ 90 dBm
• G/T (normal): ≥ 6 dB/K
• Tx Duty Cycle: 25%

X-band 2304-channel Linear Array DBF (24×1)

Anterior plane: 48 channels. Lateral view: 48 channels, DBF multi-beam simultaneous imaging.

• Freq Band: X-band
• EIRP (French): ≥ 98 dBm
• G/T (normal): ≥ 10 dB/K
• Tx Duty Cycle: 25%

X-band 256-channel Linear Array DBF (16×1)

16×16-channel active phased array divided into 16 sub-arrays (4x4). Connected to a down-converter for sub-array-level DBF.

• Freq Band: X-band
• EIRP (French): ≥ 79 dBm
• G/T (normal): ≥ 0.5 dB/K
• Tx Duty Cycle: 25%

X-band 1024-channel Subarray DBF Type I (8×8)

32×32-channel active phased array divided into 16 sub-arrays (8x8). Subarray-level DBF.

• Freq Band: X-band
• EIRP (French): ≥ 85 dBm
• G/T (normal): ≥ 6.5 dB/K
• Tx Duty Cycle: 25%

X-band 256-channel Subarray DBF Type II (16×4)

32×32-channel active phased array divided into 16 sub-arrays (16×4). Subarray-level DBF.

• Freq Band: X-band
• EIRP (French): ≥ 85 dBm
• G/T (normal): ≥ 6.5 dB/K
• Tx Duty Cycle: 25%

Ku-band 1024-channel Subarray DBF (Hybrid)

32×32-channel active phased array divided into 16 sub-arrays (8x8). Down-converter for sub-array-level DBF.

• Freq Band: Ku band
• EIRP (French): ≥ 89 dBm
• G/T (normal): ≥ 5.5 dB/K
• Tx Duty Cycle: 25%

Ku-band 256-channel 2D Phased Array (16×16)

Two-dimensional phase scanning, integrating T/R components, wave control, and single-pulse networking.

• Freq Band: Ku band
• EIRP (French): ≥ 77.5 dBm
• G/T (normal): ≥ -1 dB/K
• Tx Duty Cycle: 25%

Ku-band 384-channel 2D Phased Array (24×16)

Two-dimensional phase scanning, integrating T/R components, wave control, array size 24×16.

• Freq Band: Ku band
• EIRP (French): ≥ 81 dBm
• G/T (normal): ≥ 1 dB/K
• Tx Duty Cycle: 25%

Ku-band 512-channel 2D Phased Array (32×16)

Two-dimensional phase scanning, integrating T/R components, array size 32×16.

• Freq Band: Ku band
• EIRP (French): ≥ 83.5 dBm
• G/T (normal): ≥ 2 dB/K
• Tx Duty Cycle: 25%

Ku-band 576-channel 2D Phased Array (24×24)

Two-dimensional phase scanning, integrating T/R components, array size: 24×24 (under development).

• Freq Band: Ku band
• EIRP (French): ≥ 84 dBm
• G/T (normal): ≥ 2.5 dB/K
• Tx Duty Cycle: 25%

Ku-band 768-channel 2D Phased Array (24×32)

Two-dimensional phase scanning, array size 24×32.

• Freq Band: Ku band
• EIRP (French): ≥ 87 dBm
• G/T (normal): ≥ 3.5 dB/K
• Tx Duty Cycle: 25%

Ku-band 1024-channel 2D Phased Array (32×32)

Two-dimensional phase scanning, array size 32×32.

• Freq Band: Ku band
• EIRP (French): ≥ 89.5 dBm
• G/T (normal): ≥ 5 dB/K
• Tx Duty Cycle: 25%

X-band 32-channel 1D Phased Array

One-dimensional phase scanning, integrating T/R components, wave control, and single-pulse networking.

• Freq Band: X-band
• EIRP (French): ≥ 68 dBm
• G/T (normal): ≥ -1.2 dB/K
• Tx Duty Cycle: 25%

X-band 48-channel 1D Phased Array

One-dimensional phase scanning, integrating T/R components.

• Freq Band: X-band
• EIRP (French): ≥ 71.5 dBm
• G/T (normal): ≥ 0.5 dB/K
• Tx Duty Cycle: 25%

X-band 64-channel 1D Phased Array

One-dimensional phase scanning, integrating T/R components.

• Freq Band: X-band
• EIRP (French): ≥ 74 dBm
• G/T (normal): ≥ 1.7 dB/K
• Tx Duty Cycle: 25%

Ka-band 4-beam Phased Array

Empowering Remote Sensing and Communication.

• Band: Tx 17.7-21.2GHz / Rx 27.5-31GHz
• AEIRP: 48 dBW | G/T: 5dB/k
• Tx Power/Weight: 450W / 8kg
• Rx Power/Weight: 120W / 4.5kg
• Beam Scanning: ≥56°, AR≤4dB, SLL≥16dBc

Ka-band 8-beam Phased Array

Supports Mainstream High-Order Modulation: 1.2/1.5 Gbps (16QAM), 900 Mbps (8PSK), 600 Mbps (QPSK).

• Band: Tx 17.7-21.2GHz / Rx 27.5-31GHz
• AEIRP: 51 dBW | G/T: 6.3dB/k
• Tx Power/Weight: 620W / 9.4kg
• Rx Power/Weight: 186.1W / 7.5kg
• Beam Scanning: ≥56°, AR≤4dB, SLL≥16dBc

KU-band 64-channel 2D subarray

• Unit spacing: 9.5 mm (azimuth) / 9.5 mm (pitch)
• Number of elements: 8×8
• Operating frequency: 15-17 GHz
• EIRP / G/T: ≥ 66dBm / ≥ -8.5dB/K
• Beam switching time: ≤ 120 μs
• T/R switching time: ≤ 100 ns
• Scanning range: azimuth ±45° / elevation ±45°
• Duty cycle / Pulse: ≥ 30% / 0.5 μs to 60 μs
• Power consumption: ≤ 50 W

KU-band 256-beam Array

• Unit spacing: 9.5 mm (azimuth) / 9.5 mm (pitch)
• Number of elements: 16×16
• Operating frequency: 15.5 GHz to 16.5 GHz
• EIRP / G/T: ≥ 78dBm / 2-4dB/K
• Beam switching time: ≤ 120 μs
• T/R switching time: ≤ 100 ns
• Scanning range: azimuth ±45° / elevation ±45°
• Duty cycle / Pulse: ≥ 20% / 0.5 μs to 60 μs
• Power / Weight: ≤ 260W / ≤ 8 kg
• Dimensions: ≤ 310mm × 200mm × 95mm
• Deviation / Zero depth: ≥ 28 dB @ normal direction
• Recipient side level: ≥ 23 dB @ normal direction
• Directional accuracy: ≤ 0.1° (RMS, 1σ)
