Product Introduction
The MCW6600 is a professional handheld broadband receiver featuring ultra-lightweight architecture, low power consumption, and extreme signal sensitivity under high environmental adaptability profiles. Equipped with a high-efficiency lithium battery power supply layout, field operators can hot-swap power cells at any location to sustain continuous rf receiver monitoring missions indefinitely.

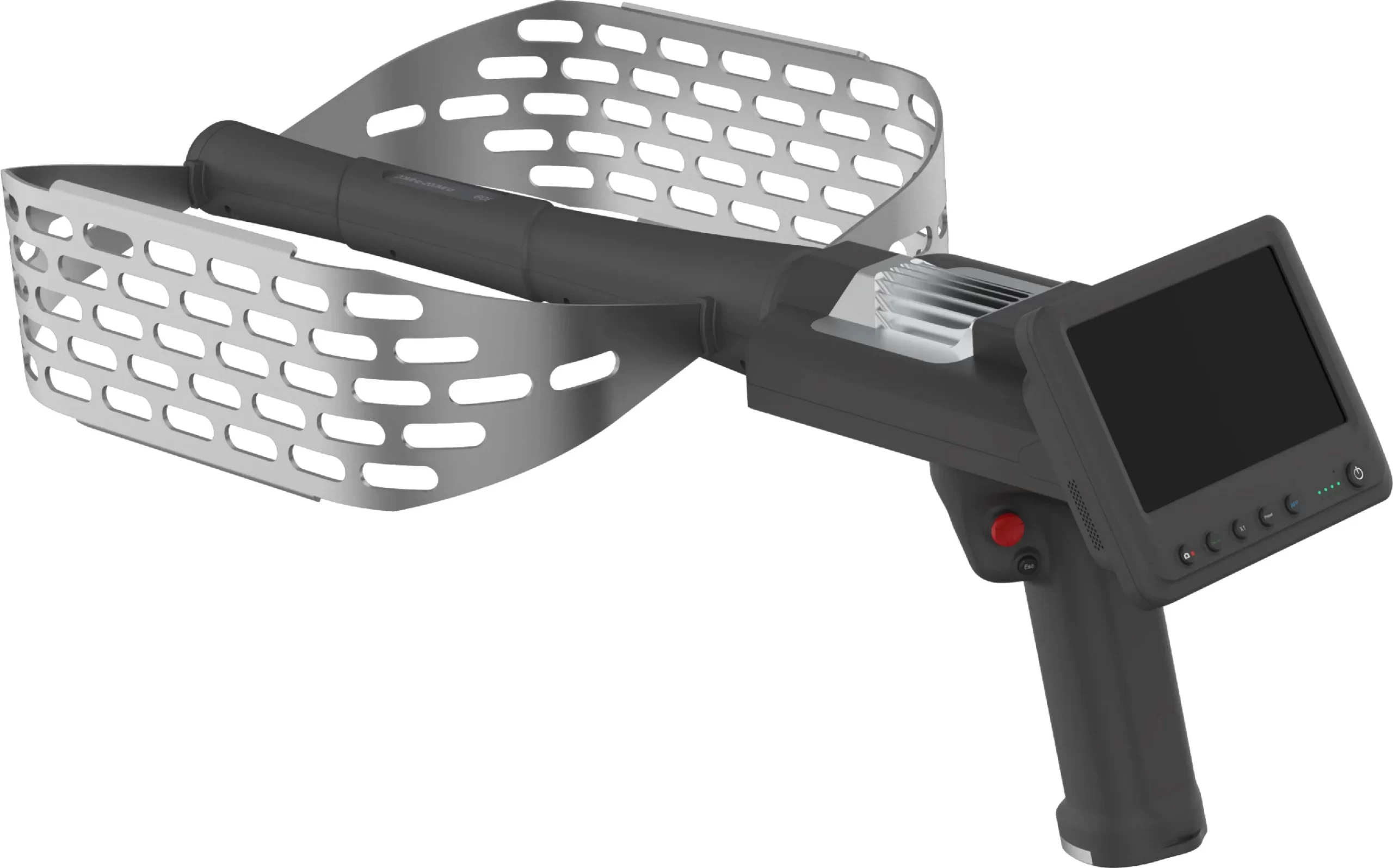

This ergonomic handheld wideband receiver integrates a 5-inch high-contrast OLED touchscreen paired with a ruggedized physical 5D navigation button, ensuring fluid device operations even in freezing or sub-zero environments. Built-in wireless synchronization modules allow for seamless localized network coordination and remote spectrum management tasks.
Ideally suited for wireless signal analysis across diverse environments such as ITU civil spectrum regulations, critical infrastructure security audits, and fast GNSS interference hunting, the MCW6600 wideband receiver empowers rapid close-proximity signal searches and highly accurate target localization. Contact our technical team for competitive factory pricing and official datasheets.
Key Features
Wide Monitoring Range
Base Configuration: 20 MHz~8 GHz. Frequency Extension: 8 kHz~20 MHz, 8 GHz~26.5 GHz, 26.5 GHz~40 GHz.
Deep Customization
Supports deep customization. Simply insert a custom SD card to achieve functional transformation from the underlying FPGA code to the UI interface.
Lightweight & Ergonomic
Lightweight housing with a magnesium-aluminum alloy shielding cavity. Total unit weight is ≤2.0 kg (including antenna).
Quick-Lock Connector
Quick-detach QMA quick-lock connector. Integrates antenna identification communication and intelligently determines polarization mode.
Adaptive Cooling System
Adaptive thermal management function utilizes multiple temperature sensors and an active environmental control cooling system.
Extended Battery Life
Battery Life: ≥3 hours. 35W 3-Stage Smart Charging System incorporates Trickle Charge and Constant Voltage functions.
Application Scenarios
Radio Signal Monitoring
- Achieves radio signal monitoring from 8kHz~40GHz through frequency extension.
- High-speed scanning capability of 400GHz/s, enabling instantaneous signal capture.
- High-performance algorithm digital phosphor spectrum separates co-frequency signals.
Close-Proximity Search
- Built-in 9-axis gyroscope, featuring compass and azimuth auto-calibration.
- Utilizes inertial navigation and pitch identification for 3D spatial signal search.
- Assists positioning using tone, histogram, and electronic map for rapid signal location.
GNSS Interference Investigation
- Built-in high-sensitivity receiver and GNSS interference analysis algorithm.
- Multi-constellation support: GPS, BeiDou, GLONASS, Galileo, QZSS.
- Accurately identifies and distinguishes between jamming and spoofing interference.
Core System Functions
1. Spectrum Scanning & Sweeping

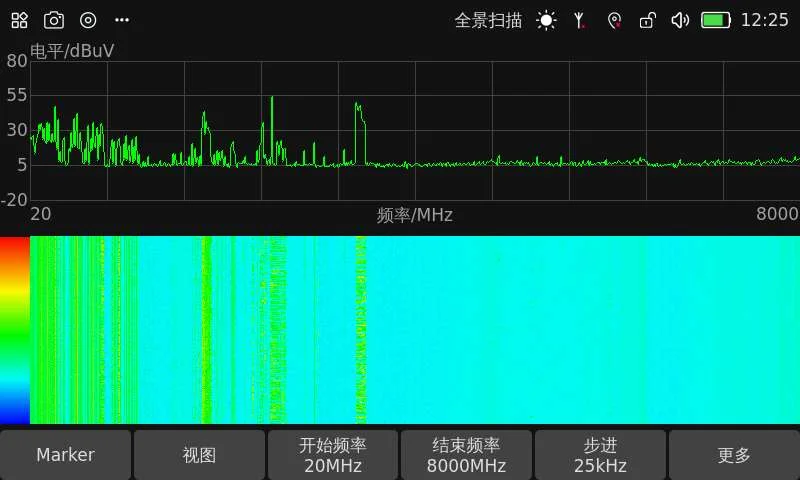

Rapid scanning and measurement of continuous operational bands to establish fast spectrum usage assessments. The internal rf receiver software architecture scans discrete target frequency points or preloaded lists in real-time, allowing users to automatically chart specified frequency ranges based on predefined parameters smoothly.
2. Single-Frequency DF

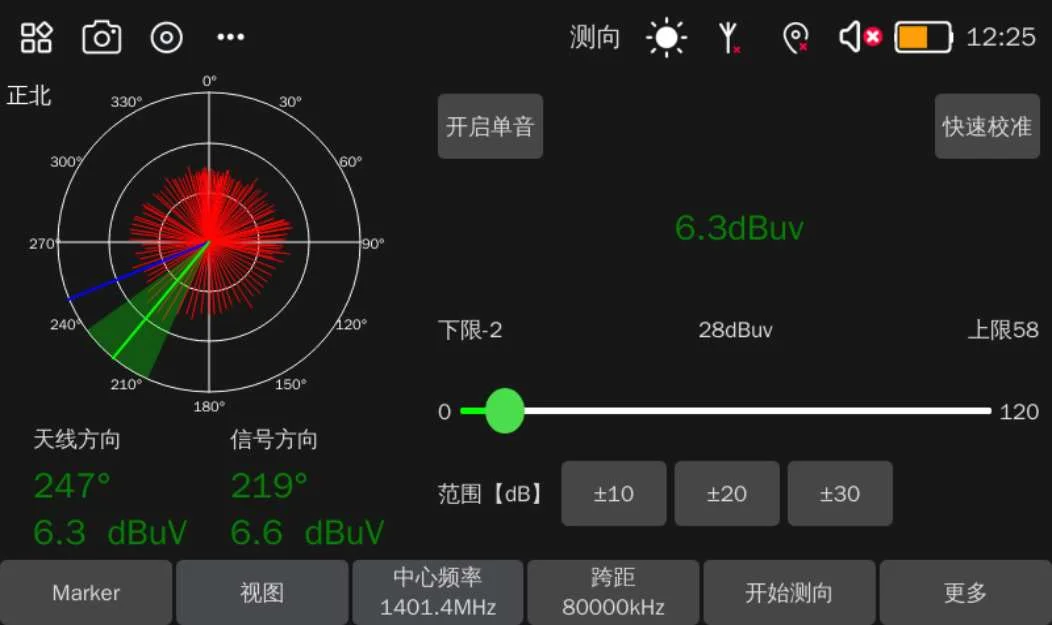

Performs high-accuracy direction finding on a specified target signal while concurrently monitoring the internal IF spectrum. The handheldwideband receiver statistically calculates and displays the live bearing probability distribution, supporting multi-antenna modules to achieve stable single-frequency DF spanning 1 MHz to 26.5 GHz.
3. Digital Phosphor Analysis

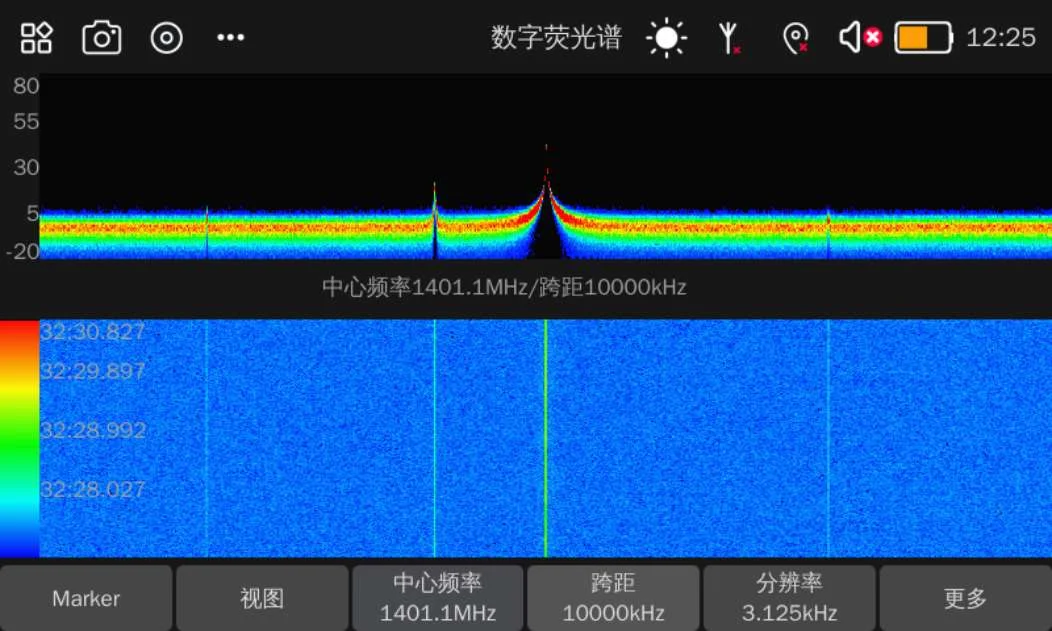

Supports immediate resolution and deep trace analysis of an incoming signal's instantaneous power level, frequency, and phase variables. The underlying handheld broadband receiver computing matrix captures signal lines in real time without loss, enabling clean co-frequency signal separation to identify hidden low-level threats.
Technical Specifications
SKU: MCW6091
Frequency Range: 20MHz~200MHz
SKU: MCW6092
Frequency Range: 200MHz~500MHz
SKU: MCW6093
Frequency Range: 500MHz~8GHz
SKU: MCW6094
Frequency Range: 8GHz~26.5GHz
| Parameters | Requirement |
|---|---|
| RF & Core Parameters | |
| Frequency Range | 20MHz~8000MHz (Extendable to 8kHz~40GHz) |
| IF Bandwidth | 80MHz |
| Monitoring Sensitivity | ≤-110dBm(Low-noise mode) |
| Frequency Accuracy | ≤0.1ppm |
| Amplitude Accuracy | ≤ 1.5dB |
| Phase Noise | ≤100dBc/Hz@10KHz(fc=1GHz) |
| IP2 | ≥45dBm (Low-distortion mode) |
| IP3 | ≥15dB (Low-distortion mode) |
| IF Rejection Ratio | ≥90dBm (Typ.) |
| Image Rejection Ratio | ≥90dBm (Typ.) |
| Noise Figure | ≤8dB(20MHz~2999.99MHz)(Low-noise mode) ≤10dB(3GHz~8GHz)(Low-noise mode) ≤11dB(8GHz~26.5GHz)(Low-noise mode) |
| DANL | -165dBm/Hz (Typ.) |
| Sweep Speed | 190GHz/s@25kHz RBW (Typ.) 400GHz/s@100KHz RBW (Typ.) |
| Other Specifications | |
| External Power Input | 5/12/20VDC (requires support for PD trigger protocol) or fixed 20VDC |
| External Storage | Supports SD card expansion |
| Weight | ≤2.0kg (including antenna) |
| Power Consumption | 25W (under normal operating mode) |
| Battery Life | ≥3 hours |
| Ports | 1x Type-C power supply and data interface, 3.5mm headphone jack, SD card slot |
| Network & Wireless | Wi-Fi/Bluetooth, LAN |
| Operating/Storage Temperature | -20°C~55°C / -40°C~65°C |
| Dimensions | 242×101×69mm (main unit) |
Options & Accessories
| SKU | Name / Description |
|---|---|
| Basic Configuration | |
| MCW6600 | Lightweight Handheld Wideband Receiver (Base SKU) |

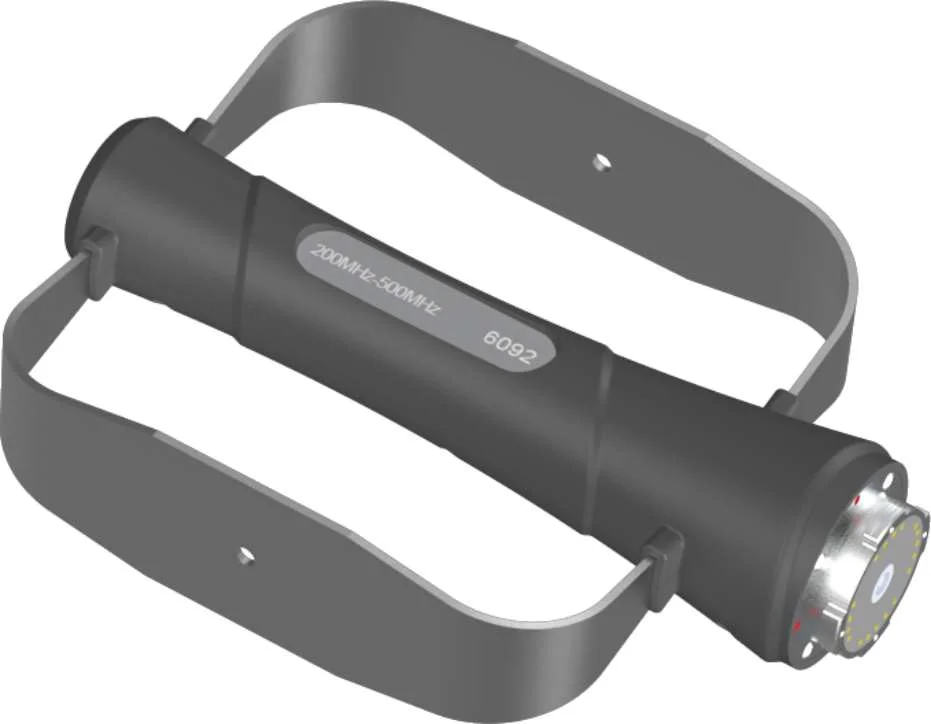

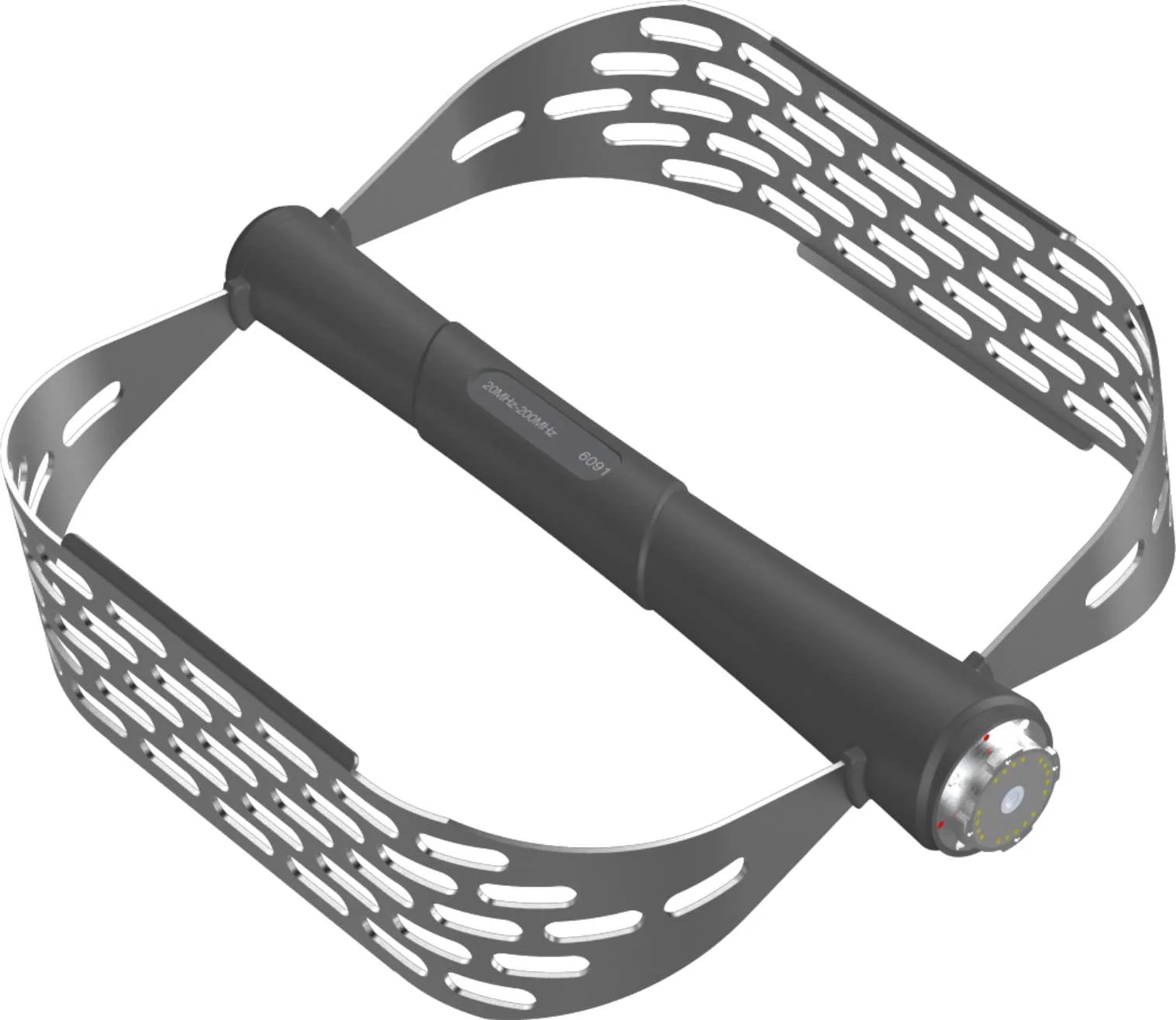

| MCW6091 | 20MHz~200MHz Handheld DF Antenna |
| MCW6092 | 200MHz~500MHz Handheld DF Antenna |

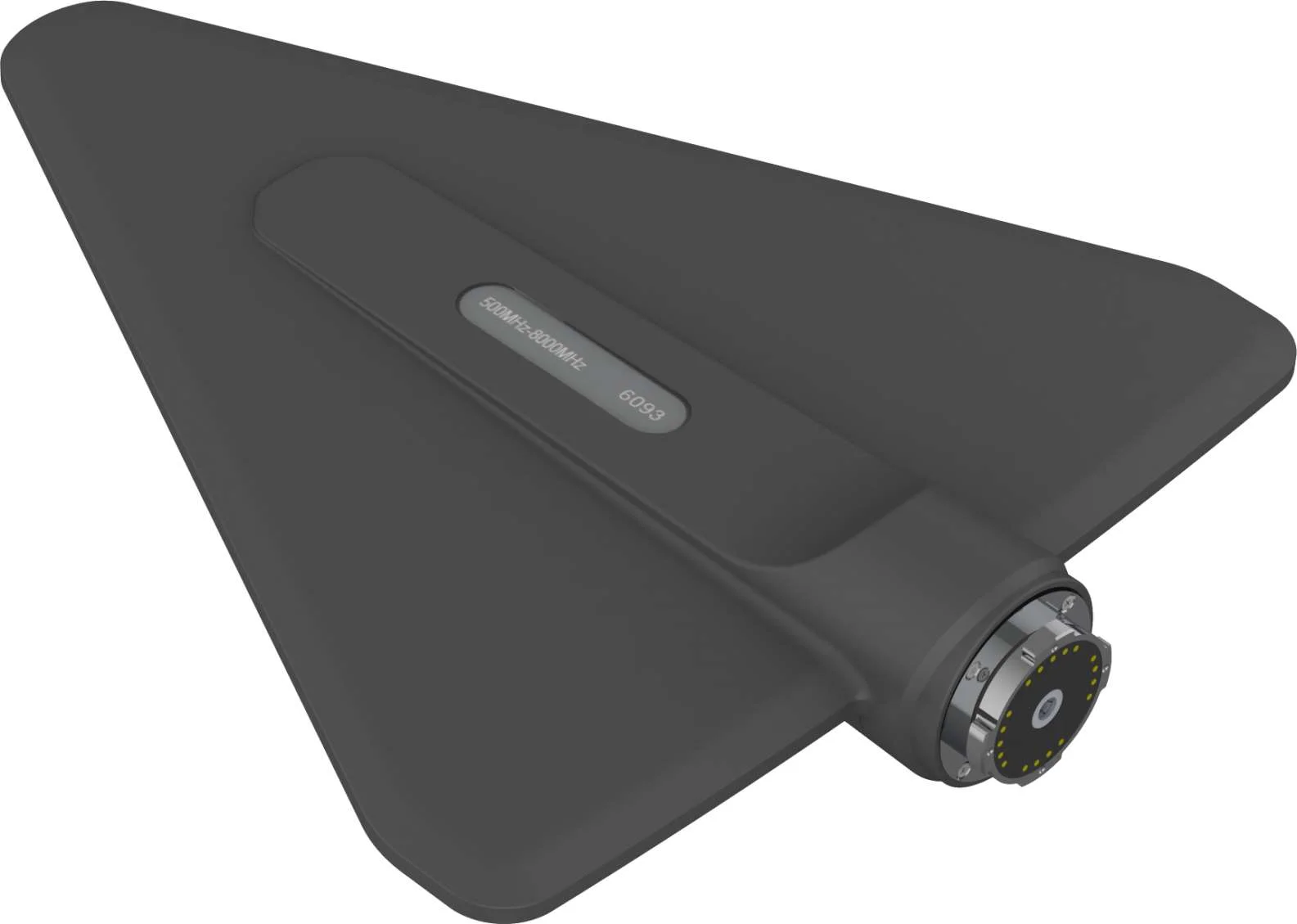

| MCW6093 | 500MHz~8GHz Handheld DF Antenna |
| MCW6600-BAT | Lithium Battery Pack |
| MCW6600-BPA | Charging Adapter |
| MCW6600-PSD | Portable Shoulder Strap |
| MCW6600-BOX | Shockproof Transport Case |
| Frequency Extension Options | |
| MCW6600-FE01 | 8kHz~20MHz Frequency Extension |
| MCW6600-FE02 | 8GHz~26.5GHz Frequency Extension |
| MCW6600-FE03 | 26.5GHz~40GHz Frequency Extension |
| Antenna Extension Options | |
| MCW6090 | 8kHz~20MHz Handheld DF Antenna |

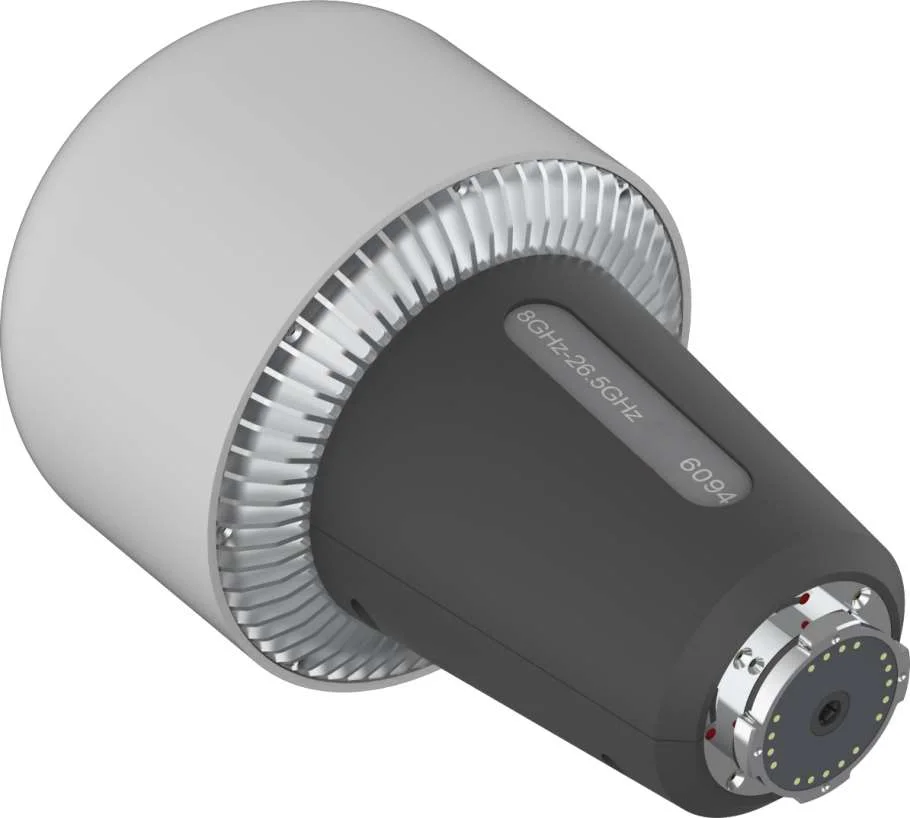

| MCW6094 | 8GHz~26.5GHz Handheld DF Antenna |
| MCW6095 | 26.5GHz~40GHz Handheld DF Antenna |
| Functional Extension Options | |
| MCW6600-FCN2 | WiFi/Bluetooth Identification & Basic Demodulation |
| MCW6600-FCN4 | Digital Trunking Demodulation (e.g., DMR, dPMR, NXDN, TETRA) |
