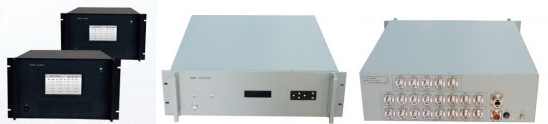

Matrix Open Series
N×M Programmable Switching · IF / L / C / Ku Bands · Local & Remote Control
As a critical component in communication systems, matrix switchers primarily perform programmable signal switching. Through integrated circuits for power distribution, switching, amplification, power supply, and control mechanisms, they enable seamless multi-channel signal switching with no output clogging. The device supports both local and remote control modes: local operation via touchscreen or keyboard, while remote control utilizes serial ports (MCW232/485) and network ports (MCW45). Featuring a standard chassis design, the equipment ensures user-friendly installation. Product highlights include: Low noise, high input P-1dB, high flatness, and strong anti-interference capability.
Product Highlights & Features
- Programmable signal switching with no output clogging
- Local operation via touchscreen or keyboard
- Remote control utilizes serial ports (MCW232/485) and network ports (MCW45)
- Low noise, high input P-1dB, high flatness, and strong anti-interference capability
- Standard chassis design ensures user-friendly installation
- Frequency coverage includes: intermediate frequency (IF), L-band, S-band, C-band, Ku-band
| SKU | Frequency range | In-band fluctuation | Insertion loss | Road isolation | Input/output standing wave ratio | Input/output interface |
|---|---|---|---|---|---|---|
| MCW-IF N×M Switch Matrix | 50 MHz to 200 MHz | ≤±0.5dB | ≤±1dB | 60dB | ≤1.5:1 | BNC-50K |
| MCW-L N×M Switch Matrix | 0.95 GHz to 2.15 GHz | ≤±0.75dB | ≤±1dB | 60dB | ≤1.5:1 | SMA-50K |
| MCW-C N×M Switch Matrix | 3.4GHz to 4.2GHz | ≤±0.75dB | ≤±1dB | 60dB | ≤1.3:1 | SMA-50K |
| MCW-Ku N×M Switching Matrix | 10.95 GHz to 12.75 GHz | ≤±1.0dB | ≤±1dB | 60dB | ≤1.35:1 | SMA-50K |
▸ System gain: adjustable within 0–10 dB (optional)
▸ Input saturation level: ≥+5dBm
▸ Control mode: manual/remote control, MCW232/MCW485/MCW45
▸ Operating temperature: 0°C to 50°C
We specialize in customizing products with various frequency bands and scales for clients.
