All-optical Switching Matrix Series
Non‑blocking Optical Switching · 16×16 to 320×320 · Remote Fiber Resource Management

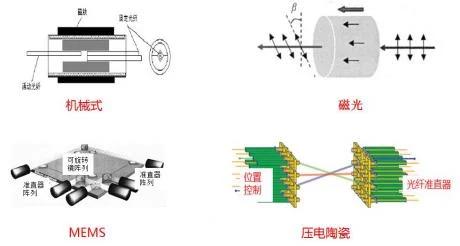

Our high-capacity all-optical switching matrix portfolio delivers non‑blocking, carrier-grade optical cross-connect and path routing management. As an established original equipment manufacturer and trusted system supplier, Chengdu Microwave develops these dynamic optical distribution sub-systems to enable immediate link fault diagnosis, real‑time online power monitoring, and intelligent remote fiber resource allocation. Engineered to maintain seamless optical transparency with low insertion loss, these systems are available in modular 16×16, high-reliability 16×16‑FC, and ultra-large-capacity 320×320 grid configurations.
Common Functional Features
- Non‑blocking optical switching
- Single‑mode / multi‑mode options
- Online optical power monitoring
- Remote control & query via RJ45
- Low insertion loss, high return loss
- Fast switching time (≤30ms typical)
- Power‑on Self-Test (POST) & Periodic BIT
- Redundant power supply (AC/DC options)
Precision 16×16 single-mode non-blocking optical switch integrated with internal optical power monitoring (OPM) boards. We fully support custom configuration adjustments for specialized single-mode or multi-mode fiber networks. Contact our technical desk for official product datasheets and standard factory quotes.
| Parameter | Specification |
|---|---|
| Matrix Size | 16×16 non‑blocking optical switch |
| Insertion Loss | ≤3.0 dB |
| Single‑channel Switching Time | ≤30 ms |
| Operating Temperature | -5°C ~ +60°C |
| Power Supply | +28V (≤0.26A), +5V (≤0.45A) |
| Max Input Optical Power | ≤500 mW |
| Durability | >10⁹ cycles |
| Dimensions (W×H×D) | 160mm × 36mm × 233.4mm |
| Weight | ≤0.95 kg |

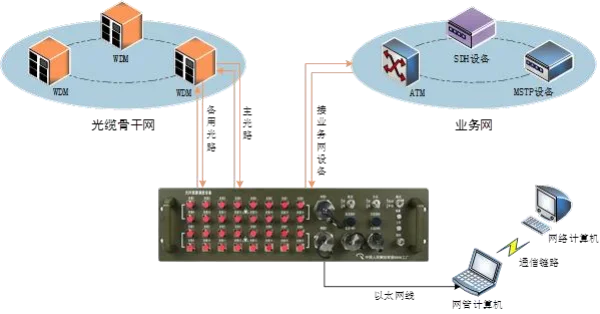

Ruggedized standard rackmount 16×16 all-optical matrix built to deliver carrier-grade link survivability under harsh environments. This original equipment manufacturer design features redundant power options and sub-millisecond route switching parameters. Request competitive factory pricing below.
| Parameter | Specification |
|---|---|
| Matrix Size | 16×16 non‑blocking optical switch |
| Insertion Loss | ≤2.0 dB |
| Single‑channel Switching Time | ≤25 ms |
| Operating Temperature | -20°C ~ +60°C |
| Power Supply | AC 220V / DC -48V |
| Max Input Optical Power | ≤500 mW |
| Durability | >10⁹ cycles |
| Dimensions (W×H×D) | 483mm × 133mm × 380mm (±2mm) |
| Weight | ≤10.5 kg |
High-density 6U rackmount 320×320 all-optical cross-connect platform engineered for ultra-large fiber routing infrastructure. This architecture features automated intermodulation checks and low-loss trace retention. Wavelength boundaries, specialized connectors, and control paths support full technical parameter adjustments.
| Parameter | Specification |
|---|---|
| Matrix Size | 320×320 |
| Operating Wavelength | Customizable |
| Insertion Loss | ≤3.0 dB (Typ. 1.5 dB) |
| Return Loss | ≥45 dB |
| Isolation | ≥50 dB |
| Switching Time | ≤30 ms |
| Power Supply | AC 220V / DC -48V |
| Max Input Optical Power | ≤27 dBm |
| Control Interface | RJ45 |
| Power Consumption | 100 W |
| Operating Temperature | -5°C ~ +55°C |
| Form Factor | 6U Rackmount |
Customizable matrix sizes, operating wavelengths, and remote control interfaces are available upon request to satisfy unique system topology profiles.
